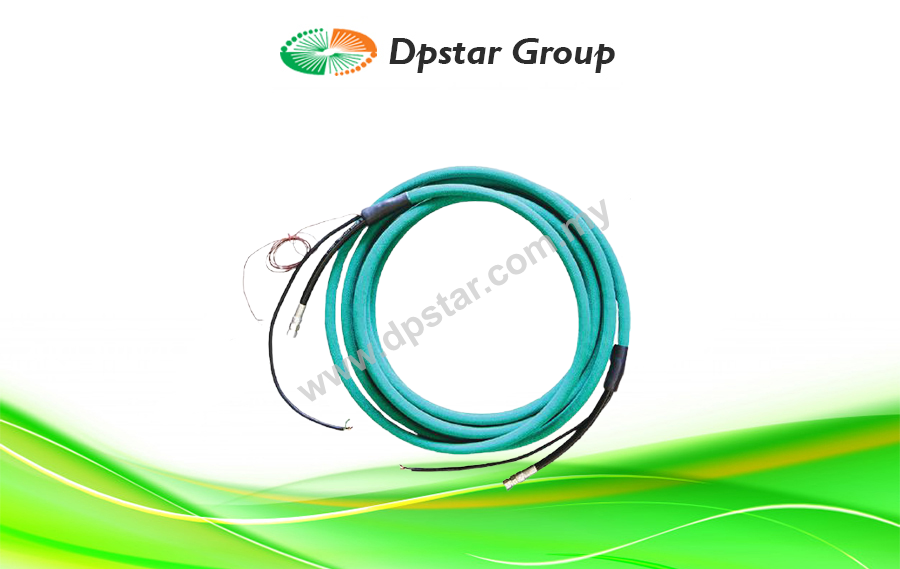

Adhesive Heat | Electrical Resistance Heat Tube

Features

  • Light weight
  • Flexible
  • Field replaceable tubing
  • Temperature indicator lights
  • High thermal efficiency
  • Long life span
  • Robust UV and chemical resistant outer cover
Enquiry

Dpstar provides the thermal engineering necessary to produce a custom heater that meets your exact length, temperature, and wattage requirements. We work with customers to understand their heating challenges and have provided many innovative solutions for custom-designed tape heaters to be installed on vessels, tubing, flat heat sinks and other applications. The engineered tape heater is electrically terminated, sealed and ready to install. The custom package may contain fixed temperature thermostats, lead wires or plugs and is always tested by quality control prior to customer use.

At the heart of this innovative product, Dpstar Heat Tube, spirally wrapped onto your choice of tubing (Teflon, aluminum, stainless steel, etc.) with your choice of sizing (1/16” O.D. to 4” O.D.) and accessories. Custom engineered for individual use, Heated Sample Lines give you the flexibility to heat most anything using voltages from 12VDC to 277VAC. Control the temperature with the use of a variable voltage supply, an embedded thermostat or through thermocouple / RTD feedback on your controller. We offer indicator lights for user awareness; strain relief for durability; a variety of coverings to choose from and Dpstar engineering to ensure you know it’s done right.

Heat Tube Options

  • Standard: heat traced with heat shrink cover
  • Heavy Duty: “Standard” plus insulation & nylon braid
  • Industrial Strength: “Heavy Duty” plus silicone jacket scuffcoat

Types Of Tubing

Dpstar has developed machinery and processes that easily accommodate spooled tubing and/or tubing that can be easily bent for packaging and shipping.

  • Teflon: Examples include FEP, PTFE, PFA
  • Stainless Steel: Examples include Type 304 or 316, welded or smooth-bore
  • Stainless Steel Braided Teflon: Inner PTFE Teflon core with Stainless Steel braided outer
  • Stainless Steel Convoluted: Stainless Steel convoluted tubing inside Stainless Steel braid
  • Thermoplastic Low & High-Pressure Tubing
  • Copper
  • Aluminum

Heat Tube Options

  • Heat Tube For Natural Gas
  • Heat Tube For Stack Emissions Monitoring
  • Heat Tube For Chemical Analysis
  • Heat Tube For Viscosity Control

Applications

  • Stack Sampling
  • Gas Analysis
  • Viscous Chemicals
  • Adhesives
  • Hot Melt
  • Emissions
  • Foods
  • Freeze Protection
  • Lubricants
  • Viscosity Control



Specification

Size and Types of Tubing 11/8” to 1-3/4” OD machine wrapped to 100+ft. Length
Nylon, Teflon, Aluminum, Stainless Steel, Copper
Tubing can be customer supplied
Multi-tube (up to 5 tubes in one bundle)
Voltage AC and DC to 480 volts
Insulations 1/4” Nomex standard
Additional 1/4” increments for colder environments
Electrical Terminations MILSPEC wire
UL 3-prong plugs
Wattage 1/8” to 1-3/4” OD machine wrapped to 100+ft. Length
Nylon, Teflon, Aluminum, Stainless Steel, Copper
Tubing can be customer supplied
Multi-tube (up to 5 tubes in one bundle)
Controls Embedded thermostat, thermocouple, RTDs
End-to-end embedded TC and power wires
Scuff Coating Clear heat shrink jacket
Black braided jacket over insulation
Silicone jacket in several colors
End Configurations Polyvinyl heat shrink standard
Copper armored for harsh environments
Tube-in-tube
Field removable stainless steel tube
Strain relief
