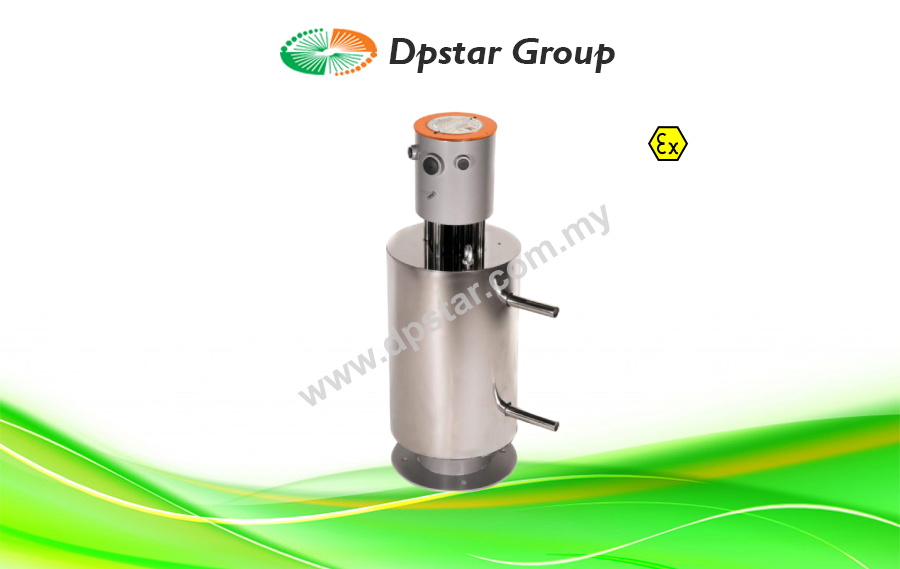

Cast Line Heaters – Maltec-H ATEX/IECEx-FP

Features

  • Certified to ATEX Equipment Directive, IECEx, CSA and CU TR (formerly GOST) standards.
  • Certified under EN/IEC 60079-0, 60079-1, 60079-7 and 60079-31.
  • Standard: IEC 60675
  • Flameproof IP66 rated terminal enclosure.
  • Cellular Glass insulated with stainless steel cladding.
  • Maximum design pressure and temperature of 660 barg at up to 400°C.
  • Process control and over-temperature protection sensors: RTD Pt100, thermocouple type K or thermostats.
  • Wall or floor, vertical or horizontal mounting.
  • Multiple heating elements allow for step control; alternatively, solid state relay or thyristor control can be employed.
  • Coil materials: stainless steel 316L, duplex S31803, super duplex S32760 (others, including nickel alloys available on request).
  • Process connections available using standard flanged or compression joints.
Enquiry

Maltec-H FP range of cast aluminium line heaters provide a compact and efficient heating solution for constant flow liquids or gases. The design incorporates electric heating elements and an indirect process heating coil embedded within marine grade cast aluminium. This provides excellent heat transfer properties combined with low surface temperatures. Cast heaters are increasingly being selected over traditional pressure vessel type heaters for the following reasons:

Benefits

  • Cost effective
  • Uniform heat distribution
  • Available on shorter lead times
  • Resistant to any internal vibrations
  • Compact size with a reduced footprint
  • Increased safety due to the encasement
  • Suitable for high process design pressures
  • High reliability and increased service life
  • Excellent heat transfer and residual heating from the aluminium casting

Typical Applications

  • Natural gas
  • Paint heating
  • CO2
  • Instrument air
  • Pasteurisation
  • Air
  • Steam generation
  • Nitrogen
  • Solvent
  • Annealing

Download

Explosion Proof Process Heater_DpstarGroup
