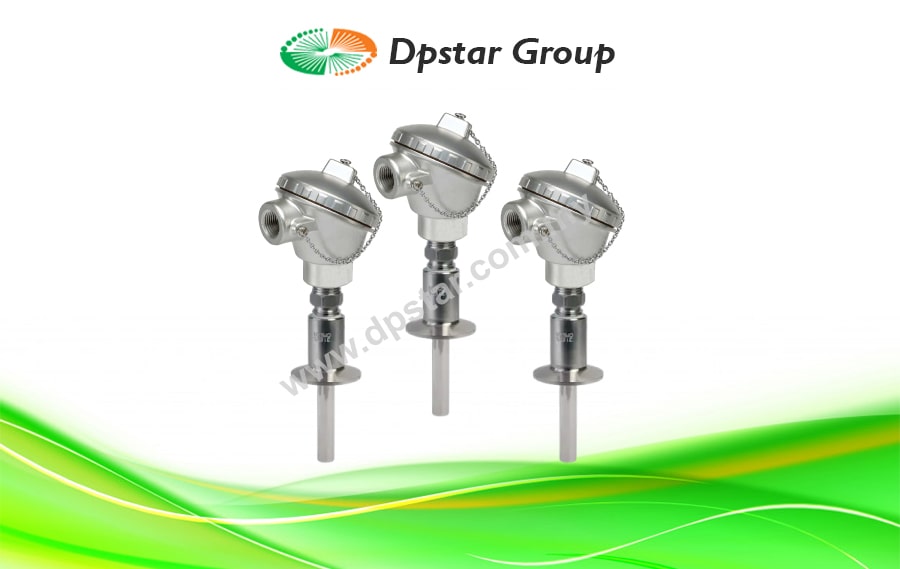

Combination Thermowells Protection Heads & RTD 3-A Sanitary – Maltec-T MRS-TW Series

Features

  • Removable Spring Loaded Probe in Well for Good Thermal Response
  • 1½” 16 AMP Tri-Grip (Tri-Clamp Compatible) Fitting
  • Standard Insertion Lengths of 1⅝, 2½, 4½, 7½, 10½”
  • White Polypropylene Head with Screw Cap Standard, Other Polypropylene and SS Heads Available
  • 316L SS Thermowell with 32 µin or Better Finish on Wetted Parts
  • 4-Wire Pt100 Class A Element Standard
  • -50 to 200°C (-58 to 392°F) Temperature Range
Enquiry
Category:

Dpstar is a professional temperature sensor supplier in Malaysia. We provide a wide range of sanitary probes & solutions for process measuring & control for dairy, F&B & life sciences industries. They are perfect for easy handling, quick use temperature measurement. This wide array of sensors will keep your sanitary liquid processes clean and running smoothly.

This PT100 RTD sensor is designed for use in sanitary or Clean-In-Place (CIP) applications where the use of a thermowell assembly is preferred over direct immersion sensors. The thermowell includes a 1½”, 16AMP cap feature for easy installation using industry-standard gaskets and clamps. The spring-loaded RTD probe can be removed from the thermowell without exposing the system to ambient conditions for calibration or replacement. This sensor is also supplied with a white polypropylene screw-cap style connection head with 3/4″NPT conduit connection standard, Stainless steel screw-cap heads, and a flip-top style white polypropylene head are also available.

The MRS-TW Series RTD probes are spring-loaded into a sanitary thermowell, with a 1⁄2 x 1⁄2 NPT fitting for easy removal. These probes feature a 4-wire Pt100 Class A element (100 ±0.06 Ω at 0°C) that is compatible with 3-wire RTD instrumentation.

Food process hygienic temperature sensors can be used to aid food safety inspection compliance and verification of time-temperature control. Combined with a chart recorder you can temperature monitor a CCP ( Critical Control Point) or sanitation time and move toward a HACCP (Hazard Analysis Critical Control Point) compliance plan.

These sensors are supplied standard as 4-wire assemblies with two red wires and two white wires. When used in 3-wire applications, cut off one white wire making sure that it will not contact any terminals or metal surfaces (note: twisting the two white wires together will reduce the lead wire resistance on one side of the sensing element by half adversely affecting the accuracy of the reading). When used in 2-wire applications, cut off one white wire and one red wire (note: in 2-wire applications, twisting the two same-colored wires together at the terminals will not adversely affect your sensor accuracy since both wires will be affected by the reduction in resistance).

Please consult sales for available options, including element types and curves, probe lengths, protection heads, and sanitary fitting styles.

How Thermocouple Probe Works?

Thermocouple probes operate on the principle that an electromagnetic force (emf) is generated when heat is applied to the junction of two dissimilar metals (sending junctions). At the other end of the wires, usually, as part of the input instrument, is another junction called the reference junction. The temperature is inferred based on the emf difference between the sensing and the reference junction, which is at a known temperature. Thermocouple probe junction types include exposed junction, ungrounded junction, and grounded junction.

Thermocouple Probe Junction Types

Sheaths with small diameters have faster response times; sheaths with larger diameters have longer life and are better for measuring higher temperatures.

Exposed Junction has the fastest response time, ideal for measuring rapid temperature changes. Clear coating on most models provides a humidity barrier for the thermocouple. Do not use with corrosive fluids or atmospheres.



Ungrounded Junction has a welded junction insulated from the protective sheath and is electrically isolated. Longer response time; use for conductive solutions or where isolation of the measuring circuitry is required.



Grounded Junction has a junction welded to tip of sheath. Wires are completely sealed from contaminants. Good response time.



Applications

  • Food
  • Dairy
  • Beverage
  • BioPharmaceutical

Specification

Model No.  Lead Wire Style Ω at 0°C Well Stem Length Insertion Length Shank Diameter
MRS-3-100-A-TW-0163-D1-NB9W 4-wire 100 2½” 1⅝” ½”
MRS-3-100-A-TW-0250-D1-NB9W 4-wire 100 4″ 2½” ½”
MRS-3-100-A-TW-0450-D1-NB9W 4-wire 100 6″ 4½” 3⁄4 step to 1⁄2″
MRS-3-100-A-TW-0750-D1-NB9W 4-wire 100 9″ 7½” 3⁄4 step to 1⁄2″
MRS-3-100-A-TW-1050-D1-NB9W 4-wire 100 12″ 10½” 3⁄4 step to 1⁄2″

Download

Maltec-T MRS-TW Series – Combination Thermowells Protection Heads & RTD 3-A Sanitary_DpstarGroup
