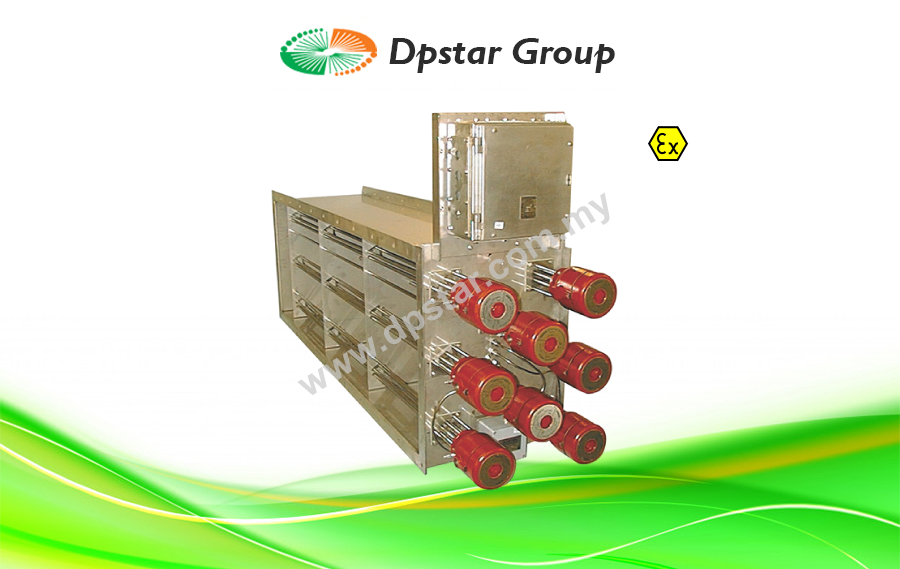

Explosion Proof Duct Heaters | Maltec-H ATEX/IECEx FP-AH Duct Heater

Features

  • Model FP-AH are rugged, custom engineered, duct heaters designed for harsh, hazardous location environments.
  • Designs consist of element banks mounted in a rigid flange frame, that allows for an almost endless number of configurations.
  • The element banks are pre-wired and bussed to a single point for easy wiring.
  • The modular design allows for easy removal and replacement of element banks in the unlikely event of failure.
  • ATEX, IECEx, EAC and CSA certifications are available for multiple temperature class applications as well as ambient temperatures down to -50°C (-58°F) and as high as 60°C (140°F).
  • Standard: IEC 60675
  • Integral over-temperature devices allow the FP-AH to be used in applications where the hazardous location is either in or outside of the duct air stream.
  • Marine and stainless steel constructions are available for use in offshore and corrosive environments.
  • And an IP66 terminal enclosure prevents water and dust from penetrating sensitive components.
Enquiry

Explosion Proof FP-AH Duct Heters are rugged, custom engineered, duct heaters designed for harsh, hazardous location environments. Designs consist of element banks mounted in a rigid flange frame, that allows for an almost endless number of configurations.  The element banks are pre-wired and bussed to a single point for easy wiring.  The modular design allows for easy removal and replacement of element banks in the unlikely event of failure.  ATEX, IECEx, EAC and CSA certifications are available for multiple temperature class applications as well as ambient temperatures down to -50°C (-58°F) and as high as 60°C (140°F). Integral over-temperature devices allow the FP-AH to be used in applications where the hazardous location is either in or outside of the duct air stream.  Marine and stainless steel constructions are available for use in offshore and corrosive environments.  And an IP66 terminal enclosure prevents water and dust from penetrating sensitive components.

Applications

  • Oil and Gas Refineries
  • Offshore Platforms and Processing Facilities
  • Coal Mines
  • Pulp and Paper Mills
  • Chemical and Petrochemical Plants
  • Water and Wastewater Treatment Plants

Download

Explosion Proof Duct Heaters_DpstarGroup
