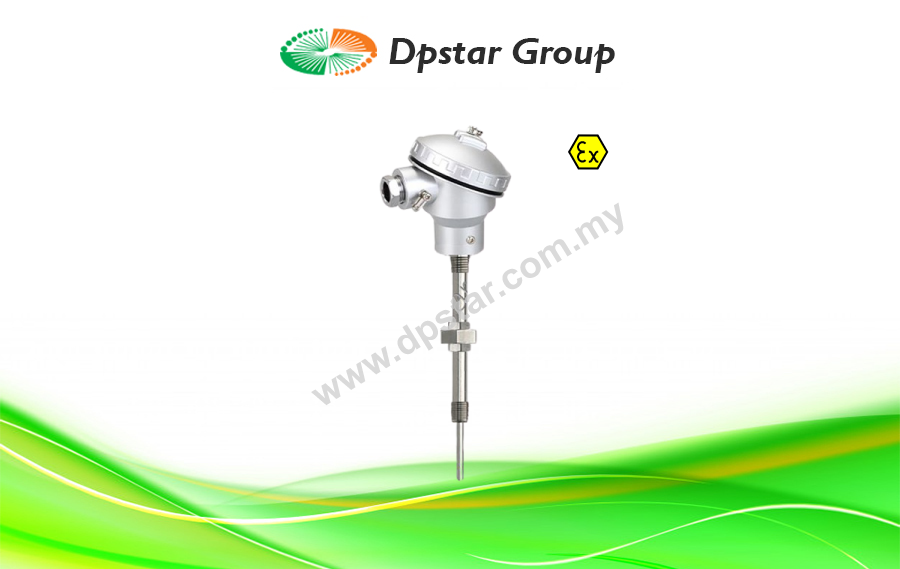

Explosion Proof EEx e Thermocouple For Zone 1 And 2 – Maltec-T TEX15B

Features

  • Measure temperatures in explosive gaseous or liquid environments for Zone 1 and 2.
  • Temperature sensor range from -200°C to 1600°C depending on the sheath material.
  • Thermowell connection by a nipple-unio-nipple with 1/2″NPT connection standard.
  • Aluminium connection head  with screw cover.
  • Cable entry M20x1.5mm.
  • Replaceable 6mm insert with 20 or 40 mm spring action.
  • Calibration K,T,J,E,N,R,S or B.
  • Single or duplex.
  • Can be delivered with head mounted transmitter.
  • Insertion length as required.
Enquiry

TEX15B Explosion Proof EEx e Thermocouple is designed to measure temperatures in explosive gaseous or liquid environments for Zone 1 and 2. Temperature sensor range from -200°C to 1600°C depending on the sheath material. Thermowell connection by a nipple-unio-nipple with 1/2″NPT connection standard. Aluminium connection head  with screw cover. Cable entry M20x1.5mm. Replaceable 6mm insert with 20 or 40 mm spring action. Calibration K,T,J,E,N,R,S or B. Single or duplex. Can be delivered with head mounted transmitter. Insertion length as required.

dpstar Group offers a wide range of standard or customised ATEX or IECEx certified temperature sensors, single and multipoint for Gas zone 0, 1 and 2 with Exi, Exe and Exd, and Dust for zone 20, 21 and 22 approval. These sensors can be fitted with a integral certified head-mounted temperature transmitter or display unit with 4-20mA, Hart or Profibus communication.

Specification

CONSTRUCTION
Suitable for zone 1 and 2
Ingress protection IP65
Ambient temp. range -40°C….+80°C
CONNECTION HEAD
Material Cast aluminium epoxy coated
Cable entry M20 x 1,5 Other entries possible
MEASURING INSERT
Construction Springloaded and replaceable
Diameter 6 mm
Type Mineral insulated
THERMOCOUPLE
Calibration K, T, J, E, N, R, S, B, U
For duplex KK, TT, JJ, EE, NN, RR, SS, BB, UU
EXTENSION
Type Nipple – union – nipple
Material Stainless Steel 316
Style / Connection 1/2″ NPT male thread
Length “X” Customer Specify

Download

Explosion Proof Thermocouple_DpstarGroup
