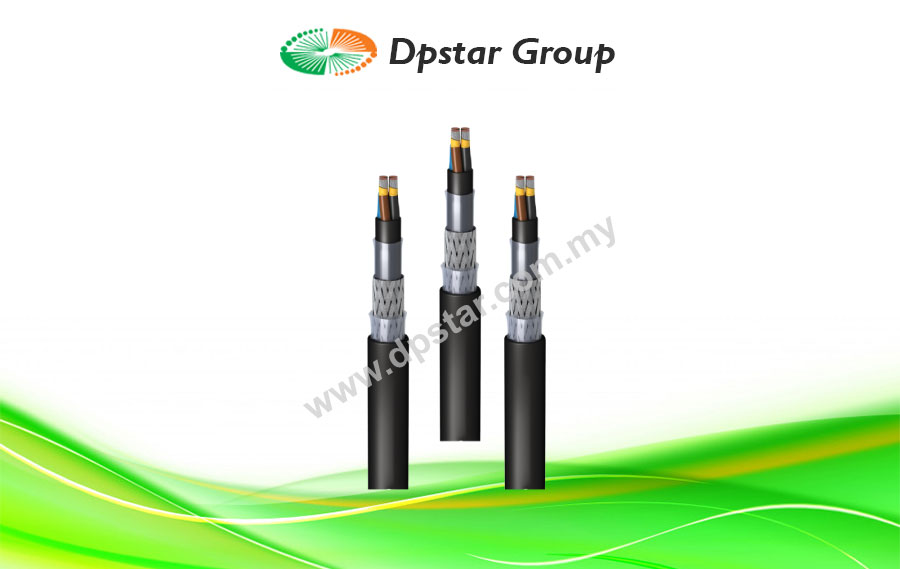

Fire Resistant Offshore Power 0.6/1kV – BFOU P5/P12

Features

– Maximum service temperature: 90ºC
– Fire non-propagation
– Mud resistance NEK TS 606
– Chemical & oil resistance: excellent
– LSZH
– Low smoke emission: Light transmittance > 60%
– Low corrosive gases emission
– Outdoor installation: permanent
– Mechanical stress impact: AG3. High severity
– Water resistance: AD4 splashes
– UV-resistant
– Electromagnetically protection
– Operation secured according to IEC 60331

Enquiry
Category:

Applications

BFOU P5/P12 is used for permanent installation in the control circuits and lights and emergency lighting and critical o!shore units where there are demands for fire safety. For installation in the areas where there is a risk of exposure to the mud, cuttings or cleaning fluids. The cable is fire resistant according to IEC 60331- 21 and shielded against electromagnetic interference.

Specification

Conductor Circular tinned stranded Cu, class 2
Insulation Fire resistant Mica tape helically applied over the conductors
Ethylene propylene rubber (EPR).
The standard identification is the following 1 conductor ……………………….black
2 conductors ……………………. blue + brown
3 conductors ……………………. brown + black + grey
4 conductors ……………………. brown + black + grey + blue
5 or more conductors ……….. blue, brown, black, grey, black.
Filling sheath Flame retardant and halogen free compound
Screen Armour: Tinned annealed copper wire braid
Outer sheath Flame retardant, halogen free and mud resistant thermoset compound acc. to
SHF MUD, black

Download

BFOU P5-P12 – Fire Resistant Offshore Power 0.6-1kV-DpstarGroup
