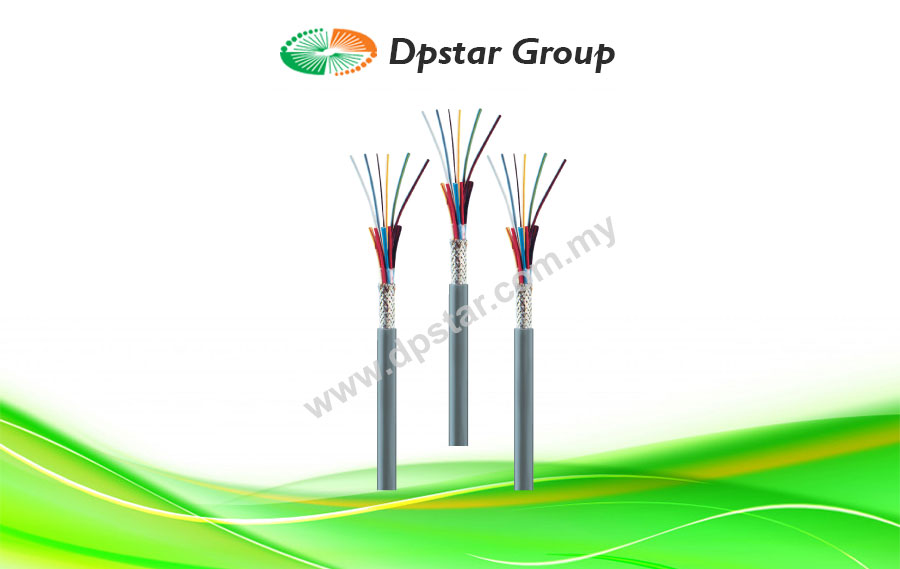

Flexible Electronics Cable With Overall Copper Braided Screening – LiYCY-O

Features

– Stranded bare Cu conductor, fine wire
– Strand structure to VDE 0295 class 5 / IEC 60228 class 5 (exception 0.34 mm2 = stranded bare Cu conductor 7 x 0.25 mm)
– Core insulation: special PVC
– Core identification:
0.14 to 0.75 mm2 – to DIN 47100, without colour repetition
1.0 to 10.0 mm2 – black cores with printed consecutive number coding
– Cores twisted in layers, with optimal lay lengths
– Film lapping
– Braided screening made of tinned copper wires
– Outer sheath: special PVC
– Sheath colour: RAL 7001 grey

Enquiry

Applications

LiYCY cables are used as connecting cables in control, measuring and signalling technology as well as in data processing and office technology. Ideal for use in connection with mobile equipment due to high flexibility and reduced outer diameter. These cables with copper screening are ideal for interference-free data and signal transmission in measuring and control technology in EMI environments.

Available special types

  • different core colours
  • different sheath colours, etc.

Specification

Peak operating voltage 300 V
2.5 mm2 and over 500 V
(Not approved for use as mains power cable!)
Test voltage 1200 V
2.5 mm2 and over 2000 V
Insulation resistance at +20° C ≥ 20 MOhm x km
Bending radius 15 x cable diameter
Temperature range
      flexible -5° C to +70° C
      stationary -30° C to +80° C
Flame retardant to IEC 60332-1
