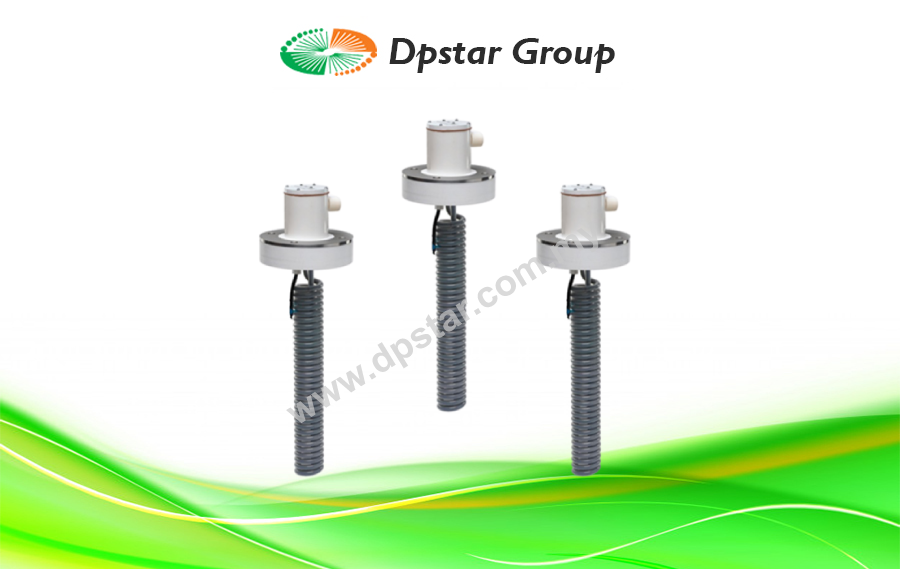

Fluoropolymer Flanged Heater | Heating Elements 3″ and 6″ Flange Sizes

Features

  • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
  • Low watt density design 10 watts/square inch (1.5w/cm²).
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
  • Thermal protector built in. Resettable P2 protector standard for solutions up to 180°F(82°C).
  • Certification: cULus (except 600 volts)
Enquiry
Categories: ,

Durable, efficient chemical heater.

Specifications

  • 1000 – 18000 watts
  • 120 to 600 volts

Options Available (Consult Factory)

  • Lower watt densities for highly viscous solutions and technical acids.
  • P8 (type J) thermocouple for solutions up to 210°F (99°C).
  • Custom configurations and lengths
  • Custom wire and conduit lengths
