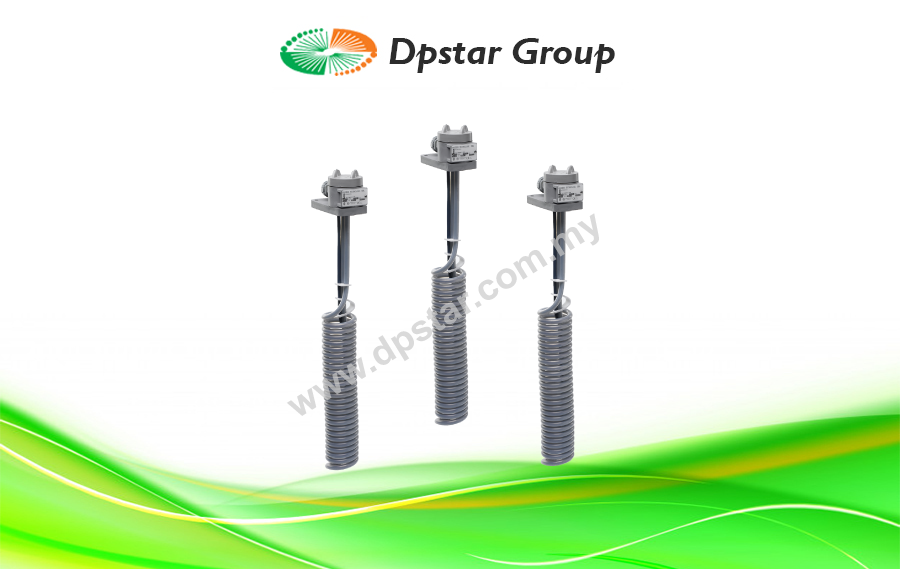

HX Style Fluoropolymer Heater | Heating Elements Spiral Over the Side Single Phase Heater

Features

  • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
  • Low watt density design 10 watts/square inch (1.5w/cm²).
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
  • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
  • Certification: cULus (except 600 volts)
Enquiry
Categories: ,

Excellent Chemical Resistance To Aggressive Acids.

Specifications

  • 500 – 9000 Watts
  • 120 To 600 Volts (600 Volts On 4500 Watts Or Lower Only)

Options Available (Consult Factory)

  • Resettable Thermal Protectors
  • Polypropylene Guards (Sold Separately)
  • Custom Configurations And Lengths
  • Custom Wire And Conduit Lengths
