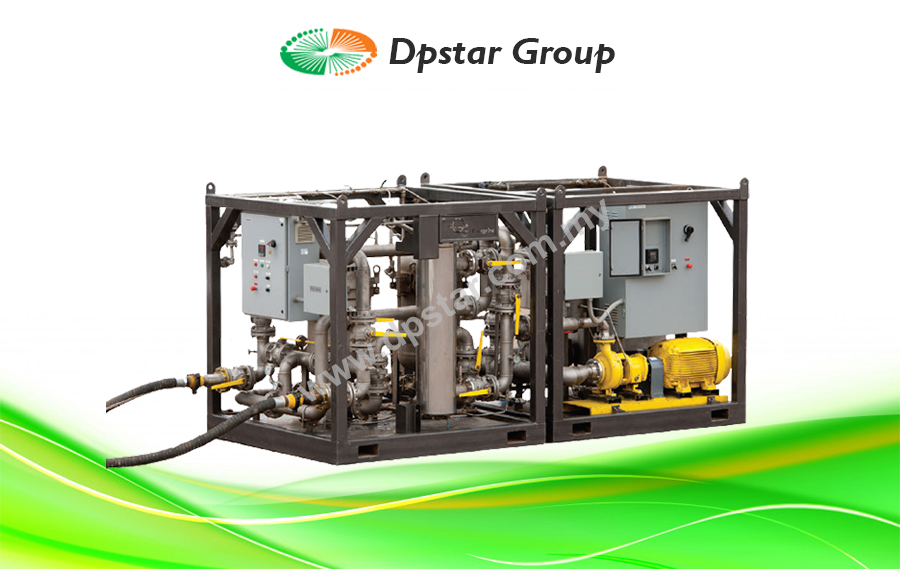

Flushing Skids 2000 – Maltec MFS-2000

Features

  • Fully integrated skid-mounted flushing and filtration unit.
  • Specifically designed for quick set up and operation.
  • The unit can provide controlled flow rates from 200 to 2000 litres (52.8 to 528 gallons) per minute for flushing, chemical cleaning, or filtering operations.
  • This system is ideal for applications where a high degree of cleanliness is required to meet operational or OEM specifications.
Enquiry

Dpstar Group has a range of specialized oil flushing skids designed to efficiently remove particulate contamination from lubrication and hydraulic oil systems. Dpstar’s oil flushing skids combine pump, filter and heater into one compact unit. This allows for a small footprint and the ability to set up close to the system being worked on. Cleaning oil systems by using an external flushing skid such as Dpstar’s all-in-one units allows systems to achieve the required cleanliness specification in much shorter durations.

The MFS-2000 is a fully integrated skid-mounted flushing and filtration unit specifically designed for quick set up and operation. The unit can provide controlled flow rates from 200 to 2000 litres (52.8 to 528 gallons) per minute for flushing, chemical cleaning, or filtering operations. This system is ideal for applications where a high degree of cleanliness is required to meet operational or OEM specifications.

Equipment

The MFS-2000 comes equipped with a 270, 000 BTU per hour electric heating element, a dual seal stainless steel 75 HP pump capable of pressure up to 150 psi, a stainless steel 0.75 m3 (26.5 ft3) chemical additive tank, and two vertical four-bag filter vessels containing four 7’’ x 32’’ high-flow bag filter elements able to meet standards as demanding as 1 micron. The MFS-2000 is also equipped with fully integrated stainless steel piping between elements, including a reverse flow manifold and easy access connection points for suction and discharge.

MFS-2000 Footprint

The MFS-2000 is suitable for both water and oil base applications, and is ideal for any of the following:

  • Lube oil flushing
  • Chemical cleaning
  • High-velocity flushing
  • Glycol filtration
Length Width Height Weight
Pumping
Skid
2.2 m
(7’ 3”)
2.2 m
(7’ 3”)
2.3 m
(7’7”)
3000 kg
(6600 lbs)
Filtration
Skid
2.2 m
(7’ 3”)
2.2 m
(7’ 3”)
2.3 m
(7’7”)
2600 kg
(5700 lbs)

.

Requirements

The MFS-2000 is required to either have spill containment or be placed in a berm. Heating and hoarding is required at subzero temperatures. The MFS-2000 requires the following power requirements at maximum duty:

Element Current Power
Centrifugal Pump 75 amps 60 kW
Heater 100 amps 80 kW
480V, 60Hz, 3 Phase Power
600V, 60Hz, 3 Phase Power

Specification

Flow Capability 200 to 2000 litres per minute
Discharge Pressure Up to 150 psig
Filtration Range 1 to 50 micron
Operating Temperature Range 5˚C to 95˚C

Download

Maltec MFS-2000 Flushing Skids 2000_DpstarGroup
