Heated Pressure Hoses (up to 250°C)

Features

  • Temperatures from 5 °C up to 250 °C
  • Diameter 4 mm up to 25 mm
  • Voltage: 12 V up to 400 V
  • Operating pressure: up to 500 bar
  • Heat output optimised for application
  • Trace heaters produced in house
  • Available for automotive industry as silicone or LABS-free version
Enquiry

Dpstar is one of the leading suppliers of heated hoses / flexible heated lines. Whether freeze prevention or temperature maintenance: We ensure transport of liquid and gaseous media without loss of temperature. They are customized to reach the required temperature and match specifications. There are different temperature ranges up to 100 °C, 200 °C, 250 °C or 450 °C.

Design of a Heated Hose

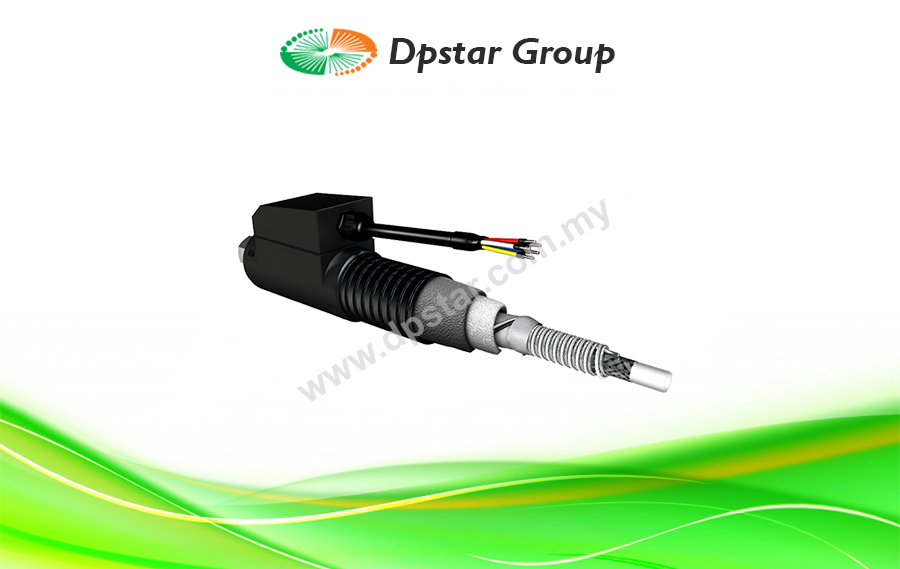

A Dpstar heated hose is individually designed and produced according to customer specifications. Our in-house development department will be pleased to implement your requirements and find a tailor-made solution. Heated hoses always consists of an inner liner, temperature sensor, heating conductor, insulation, outer jacket, and an end cap. By means of a temperature sensor the information about the temperature can be processed and the heated hose can be operated via the controller. They are therefore a component of the entire heated hose. Whether fittings are installed depends on the application, the operating pressure, and temperature. In addition to the connection fittings, hose- or pipe protrusions are also possible. Of course, Dpstar offers a flexible heated hose that can be used in hazardous areas.

You can choose from various materials according to your requirements. For example, an outer jacket as a corrugated metal hose made of stainless steel is mechanically more robust and for higher temperatures. A silicone outer jacket is washable and for more flexibility and smaller bending radius. We focus on individuality, each heated hose is designed and produced according to specific customer specifications. For high-pressure applications, fluoropolymer and polyamide materials are used. With our products we can offer a solution for almost every application. Each heated hose line has an integrated trace heater (regulated or self-regulated) and thus ensures optimum heating of the medium.

DN4-DN25 – Heated pressure hoses serve to heat media, maintain a constant temperature, and transport media such as the following without heat loss: oil, grease, wax, resin, tar, paint, water, glue, plastic, casting compound, food, etc. The heated hose is mounted on a movable system and machine parts in most cases.

Benefits

  • Designed & manufactured for your customized applications.
  • In-house manufactured heating cables for best quality & longer lifespan.
  • High flexibility for applications where a small bending radius is required.
  • With temperature controller (resistance heating cables/heating tapes) or self-regulating (trace heaters)

Advantages of flexible heated hoses

Concerning electrical heat tracing, Dpstar offers various possibilities to heat containers, pipes, tanks, or vessels. Flexible transport without temperature loss of liquids and gases is also very important. Each system with heated hoses is tailor-made and convinces with high flexibility and load capacity.

Applications

  • Pasting robot
  • Pipe cleaning
  • Steam cleaners
  • Washing systems
  • Epoxy resin system
  • Packaging systems
  • Roof renovation
  • Paint spraying plants
  • Dosing systems
  • Bottling systems
  • Surface Technology
  • Fastening Technology / hot-melt systems, packaging gluing and labelling machines
  • PU foaming plants
  • Glass and sensitive surfaces
  • Chemicals
  • Oil
  • Glue
  • Foodstuffs
  • Paints

Specification

Nominal Temperature 5°C up to 250°C
Diameter 4mm up to 25mm
Voltage 12V up to 500V
Operating Pressure up to 400 bar

Download

Heated Pressure Hoses (up to 250°C)_DpstarGroup
