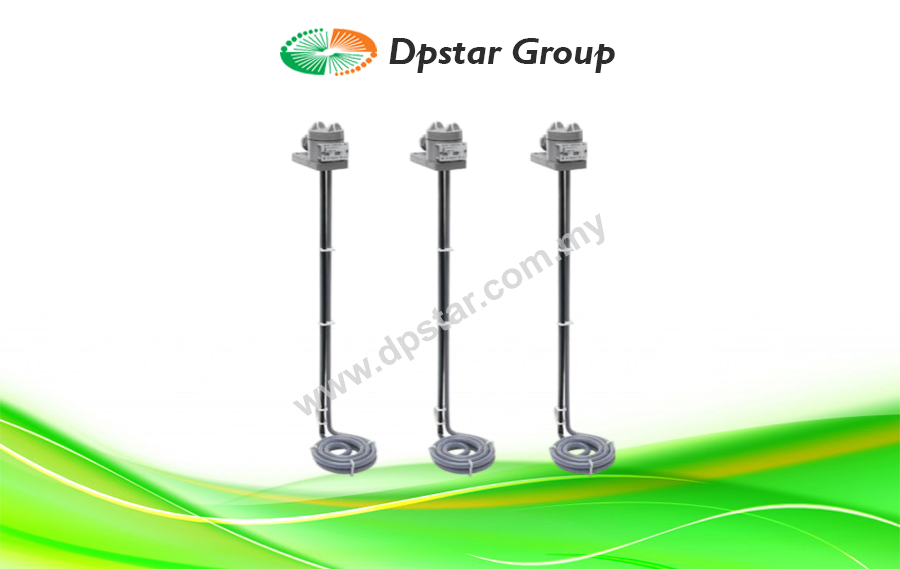

HXFL Style Fluoropolymer Heater | Heating Elements Low Profile Bottom Heater

Features

  • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
  • Low watt density design 10 watts/square inch (1.5w/cm²).
  • 4 foot (1.2m) continuous fluoropolymer (PTFE) cable leading to a vapor resistant terminal enclosure and 3 ft (.9m) flexible PVC liquid tight conduit.
  • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
  • Certification: cULus (except 600 volts)
Enquiry
Categories: ,

Excellent chemical resistance to aggressive acids.

Specifications

  • 500 – 6000 watts
  • 120 to 600 volts  (600 volts on 4500 watts or lower only)

Options Available (Consult Factory)

  • Resettable thermal protectors
  • Polypropylene guards (sold separately)
  • Custom configurations and lengths
  • Custom wire and conduit lengths
