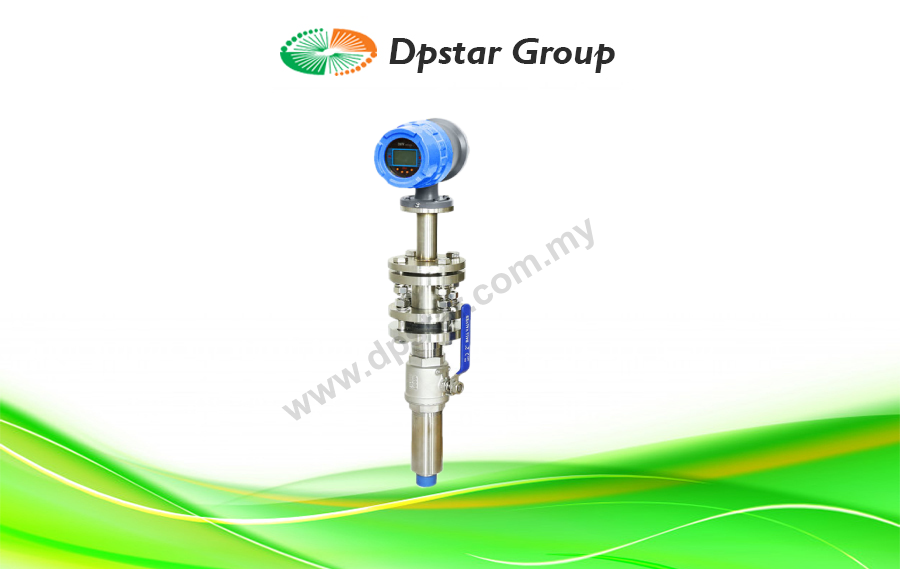

Insertion Magnetic Flow Meter – Vetrix IM Series

Features

  • Designed for measurement of the velocity of liquid.
  • It can be installed in any pipeline of internal diameter from 200mm (8in) to 3000mm (120in), through a small tapping.
  • The complete lack of moving parts of this insertion flow sensor is the source of its reliability.
  • There is no rotor to stop turning in dirty water and there are no bearings to wear out.
  • Reverse  flow output are optional.
  • A rapidly reversing magnetic field is produced in the lower housing.
  • As the fluid moves through this field, a voltage is generated that is measured and translated into a frequency signal proportional to flow rate.
  • This square wave signal can be sent directly to a PLC, control or converted to 4 to 20 mA.
Enquiry

Vetrix Insertion Magnetic Flowmeter is designed for measurement of the velocity of liquid. It can be installed in any pipeline of internal diameter from 200mm (8in) to 3000mm (120in), through a small tapping. The complete lack of moving parts of this insertion flow sensor is the source of its reliability. There is no rotor to stop turning in dirty water and there are no bearings to wear out. Reverse  flow output are optional. A rapidly reversing magnetic field is produced in the lower housing. As the fluid moves through this field, a voltage is generated that is measured and translated into a frequency signal proportional to flow rate. This square wave signal can be sent directly to a PLC, control or converted to 4 to 20 mA.

Specification

Diameter 200-3000mm
Velocity 0.5-6m/s
Accuracy ±2.5% FS
Liquid Conductivity >5µ S/cm
Straight Pipe 5D (D means diameter) for inlet; 3D for outlet
Liquid Temperature -20… + 150℃
Ambient Temperature -20…+ 60℃
Pressure 1.6Mpa
Protection IP65 (compact type); IP68 (remote type)
Signal Output 4-20mA / Pulse
Communication RS485; Hart
Power Supply 110~240Vac; Battery

Ordering Information

Model Suffix Code Description
IM- 1 2 3 4 5 6 7 Insertion Magnetic Flowmeter
Diameter XXXX Stand for diameter
0200:DN200
3000:DN3000
Structure S Compact type with local display
L Remote type with 10 meters cable
Electrode Material M SS316L
T Titanium
D Tantalium
H Hastelloy Alloy C
P Platinum-Iridium
Signal output 0 No Output
1 4-20mA / Pulse
Power Supply 0 110-240V AC
-1 24V DC (20-36V DC)
-2 Battery Power Supply
Communication 0 No Communication
1 Modbus RS485
2 Hart
3 GPRS
4 Profibus DP
Connection S Simple Type
B Ball Valve Type
