Maltec-H Infrared Silica Quartz Heater | Heating Elements

Features

  • Quartz heaters can deliver near and far-infrared wavelengths.
  • More effective than a single wavelength
  • Capable of generating full heat output capacity in 40 to 50 seconds and cool down in less than 15 seconds.
  • They offer excellent life characteristics whether operated continuously or intermittently with a quick heat and cool down response time.
  • Used for the heating process of liquid in the form: water, chemical liquids, etc.
  • This heater allows you to thoroughly heater the fluid in accordance with the required temperature.
  • Standard: IEC 60675
Enquiry

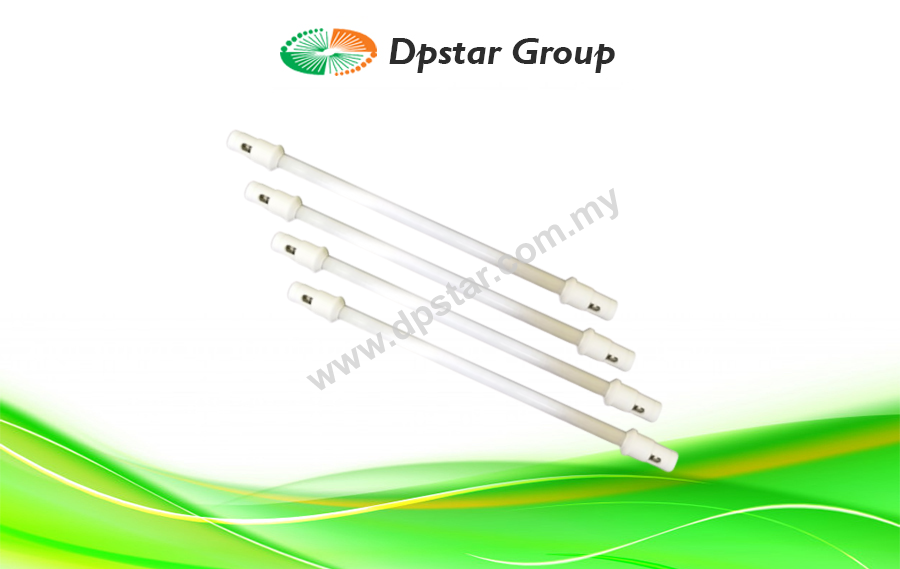

Quartz Heaters consist of a helically wound resistance coil housed in a pure vitreous silica fused quartz tube. The heating coil is specially designed to provide a long life at rated voltage. The quartz tubing is terminated with specially designed ceramic insulating caps that allow the quartz tubing to breathe. The ceramic caps are securely fastened to the quartz tube to the power connecting termination. This construction is excellent for operating continuously or intermittently with a quick heat and cool down response time.

Straight long wave infrared rays can be easily arranged to fall on an object by use of a reflection plate. If the cross-section of the reflection plate is designed in parabolic shape, most of the reflected rays will go in parallel direction to heat the object. Aluminum plate has excellent reflective power, Stainless plate is slightly inferior to aluminum plate while stainless plate must be used where corrosive gas emerges. There is 30% difference between the use of parabolic reflection plate and a plane type. Therefore, a parabolic reflection plate should be used whenever it is possible. For maintaining the efficiency of the reflector cleaning must be done.

Typical Application

  • Shrink Packaging Tunnel
  • Laminating
  • Thermoforming
  • Plastic Forming
  • Fusing Plastics
  • Food Warming
  • Thawing
  • Electrostatic Copying Equipment
  • Food Processing
  • Drying Photo Film Equipment
  • Curing Rubber
  • Drying Textiles
  • Drying Lacquers and Paints
  • Drying Sand Cores
  • Space Heaters
  • Thermal Copying equipment
  • Sterilization
  • Water dry off
  • Sealing

Download

Maltec-H Infrared Silica Quartz Heater Heating Elements_DpstarGroup
