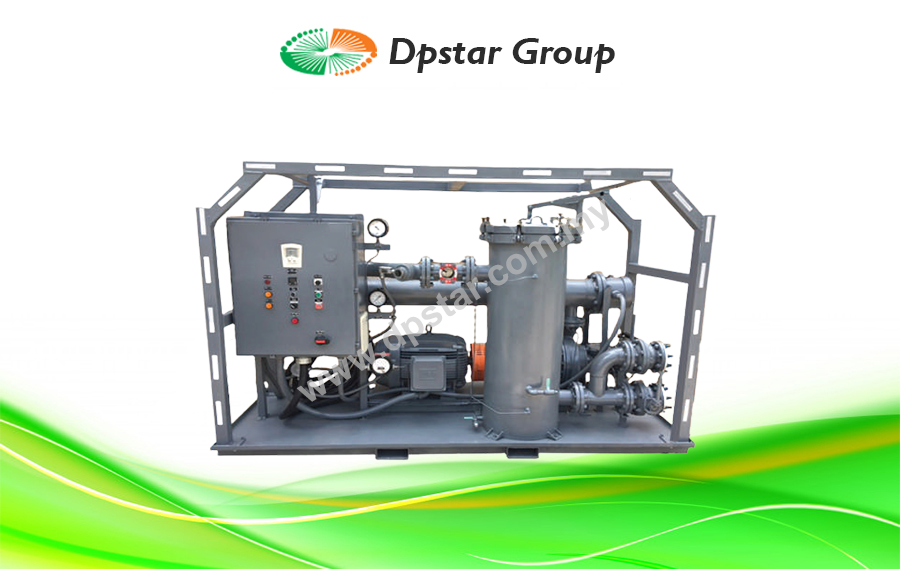

Oil Flushing Skids – Maltec MOFS Series

Features

  • Efficiently remove particulate contamination from lubrication and hydraulic oil systems.
  • Combine the pump, filter, and heater into one compact unit.
  • Allows for a small footprint.
  • Ability to set up close to the system being worked on.
  • Cleaning oil systems by using an external flushing skid such as Dpstar’s all-in-one units.
  • Allows systems to achieve the required cleanliness specification in much shorter durations.
Enquiry

Dpstar Group has a range of specialized oil flushing skids designed to efficiently remove particulate contamination from lubrication and hydraulic oil systems. Dpstar’s oil flushing skids combine pump, filter, and heater into one compact unit. This allows for a small footprint and the ability to set up close to the system being worked on. Cleaning oil systems by using an external flushing skid such as Dpstar’s all-in-one units allows systems to achieve the required cleanliness specification in much shorter durations.

Flushing Equipment

  • Pump
    The pump on the flushing skid is designed to deliver a higher flow rate than the permanent equipment pump of the system being cleaned. The higher velocity in the piping allows for shorter cleaning durations than if the system pump is used.
  • Filters
    Dpstar’s oil flushing skids are equipped with high-efficiency filters to capture particulate as small as 1 micron. The differential pressure across the filters is monitored during the flush as an indication of the quantity of particulate being removed from the system. At a predetermined differential pressure, the filters are changed out.
  • Heaters
    Heating the flushing oil will lower its viscosity and allow for a better cleaning effect during the flush. Dpstar’s oil flushing skids have temperature controllable fluid heaters to maintain the flushing oil at optimum temperature during the cleaning.

Applications

Foreign contaminants in hydraulic and lubrication oil can cause premature failure of the system. A high velocity oil flush utilizes turbulent flow to pick up and carry foreign material out of the lubrication system. A high velocity flush is required during pre-commissioning activities, major turnarounds and when a failure that distributes wear metals into the lubrication system occurs.

Dpstar’s Oil Flushing Skids remove microscopic particulate to achieve oil cleanliness. Plant reliability services performed with these skids include:

  • High-Velocity Hot Oil Flushes (HVOF)
  • Lube Oil Flushing
  • MHC & EHC Turbine Oil Flushing
  • Hydraulic Oil Flushing

Specification

Equipment Name Flow Rate Max Pressure Weight Height Depth Width Power Requirements Heater
MOFS-100 100 gpm 50 psig 2400 lbs 84” 48” 68” 480V 60 Amps 3 Phase 36kW
MOFS-150 150 gpm 90 psig 2200 lbs 78” 48” 96” 480V 80 Amps 3 Phase 50kW
MOFS-200 200 gpm 100 psig 3255 lbs 65” 41” 85” 480V 77 Amps 3 Phase 40kW
MOFS-350 350 gpm 100 psig 3800 lbs 68” 48” 96” 480V 80 Amps 3 Phase 32kW
MOFS-600 600 gpm 100 psig 4200 lbs 68” 60” 96” 480V 140 Amps 3 Phase 60kW
MOFS-700 700 gpm 70 psig 4200 lbs 68” 60” 96” 480V 150 Amps 3 Phase 72kW
MOFS-1000 1000 gpm 100 psig 5200 lbs 83” 60” 100” 480V 175 Amps 3 Phase 40kW

Download

Maltec MOFS Series Oil Flushing Skids_DpstarGroup
