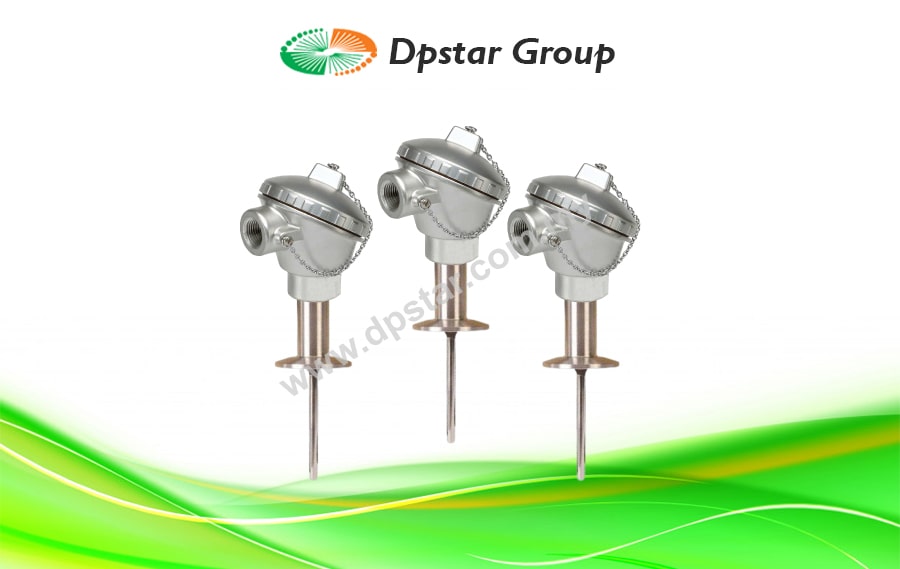

Protection Head Thermocouples Type T, J & K 3-A Sanitary Probe – Maltec-T MTS-S Series

Features

  • Standard Duty 1⁄4″ Probe Diameter
  • 1½” 16 AMP Tri-Grip (Tri-Clamp Compatible) Fitting Standard
  • White Polypropylene Head with Screw Cap Standard
  • 316L SS Wetted Surfaces with 32 µin or Better Finish
  • Ungrounded J, K, T or E Thermocouple, Special Limits of Error
  • -50 to 200°C (-58 to 392°F) Temperature Range
Enquiry
Category:

Dpstar is a professional temperature sensor supplier in Malaysia. We provide a wide range of sanitary probes & solutions for process measuring & control for dairy, F&B & life sciences industries. They are perfect for easy handling, quick use temperature measurement. This wide array of sensors will keep your sanitary liquid processes clean and running smoothly.

The 3-A approved MTS-S Series Thermocouple Sensors are designed for use in Sanitary or Hygienic Clean-in-Place applications in the Food, Dairy, Beverage, and BioPharmaceutical industries. These sensors are manufactured with 316L stainless steel housings that meet the requirements of ASME BPE-2007 and 3-A Standard 74-05 and are welded and processed to provide a clean, smooth, 32µinch or better surface finish in the wetted areas for easy cleaning.

The MTS-S Series thermocouple probe assemblies are available in standard lengths from 3 to 6″, with an ungrounded thermocouple probe with special limits of error. The probe stems are manufactured with a standard ¼” diameter probe for standard duty service. Standard probes are available in J, K, T and E calibrations. Standard features include a 1½” 16 AMP Tri-Grip fitting, type NB9W white polypropylene protection head with screw cap.

This sensor is available with either a white polypropylene screw-top connection head (NB9W) or a stainless steel screw-top connection head (NB15) for connection to your process instrumentation. These sensors are also available in RTD and Thermistor styles to accommodate any process input requirement. In addition to the standard 1½-16AMP flange design, this sensor can be provided in a wide variety of flange sizes and styles. If you need something a little (or a lot) different, we can accommodate your needs.

Food process hygienic temperature sensors can be used to aid food safety inspection compliance and verification of time-temperature control. Combined with a chart recorder you can temperature monitor a CCP ( Critical Control Point) or sanitation time and move toward a HACCP (Hazard Analysis Critical Control Point) compliance plan.

This sensor is stocked with Type “T” or Type “J” Thermocouples standard, but are available in any thermocouple type:

Thermocouple Type Positive/Negative Conductors Color Code (Red Is Negative)
Type T Copper/Constantan Blue/Red with Brown Jacket
Type E Chromel/Constantan Purple/Red with Brown Jacket
Type K Chromel/Alumel Yellow/Red with Brown Jacket
Type J Iron/Constantan White/Red with Brown Jacket

Please consult sales for available options, including probe lengths, protection heads, and sanitary fitting styles.

How Thermocouple Probe Works?

Thermocouple probes operate on the principle that an electromagnetic force (emf) is generated when heat is applied to the junction of two dissimilar metals (sending junctions). At the other end of the wires, usually, as part of the input instrument, is another junction called the reference junction. The temperature is inferred based on the emf difference between the sensing and the reference junction, which is at a known temperature. Thermocouple probe junction types include exposed junction, ungrounded junction, and grounded junction.

Thermocouple Probe Junction Types

Sheaths with small diameters have faster response times; sheaths with larger diameters have longer life and are better for measuring higher temperatures.

Exposed Junction has the fastest response time, ideal for measuring rapid temperature changes. Clear coating on most models provides a humidity barrier for the thermocouple. Do not use with corrosive fluids or atmospheres.



Ungrounded Junction has a welded junction insulated from the protective sheath and is electrically isolated. Longer response time; use for conductive solutions or where isolation of the measuring circuitry is required.



Grounded Junction has a junction welded to tip of sheath. Wires are completely sealed from contaminants. Good response time.



Applications

  • Food
  • Dairy
  • Beverage
  • BioPharmaceutical

Specification

Model No.  Thermocouple Calibration Sheath Diameter**  Probe Length
MTS-(*)U-S-0300-D1-NB9W J, K, T or E 1⁄4″ 3″
MTS-(*)U-S-0400-D1-NB9W J, K, T or E 1⁄4″ 4″
MTS-(*)U-S-0500-D1-NB9W J, K, T or E 1⁄4″ 5″
MTS-(*)U-S-0600-D1-NB9W J, K, T or E 1⁄4″ 6″

Download

Maltec-T MTS-S Series – Protection Head Thermocouples Type T, J & K 3-A Sanitary Probe_DpstarGroup
