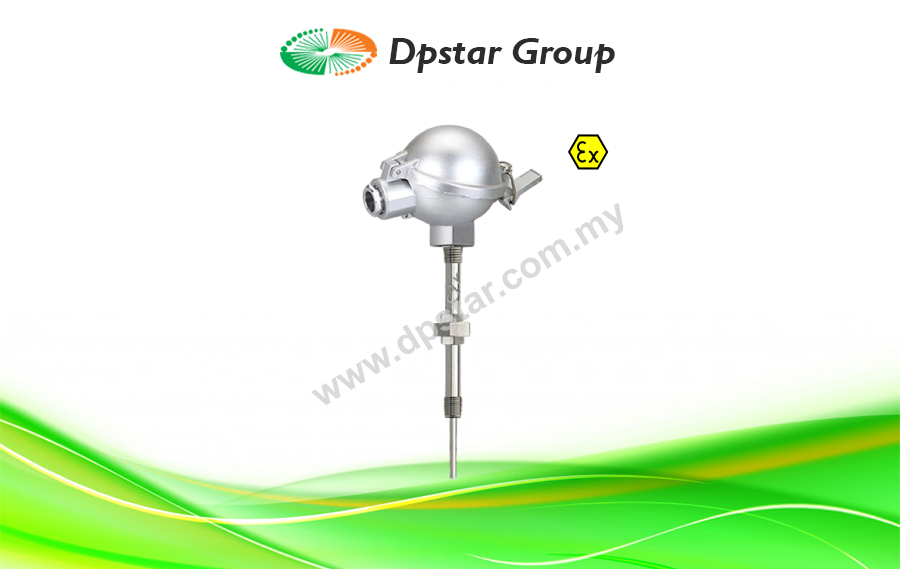

Thermocouple EEx ia With Integrated 2-Wire Transmitter – Maltec-T TEX25A

Features

  • Integrated 2-Wire Transmitter
  • Measure temperatures in explosive gaseous or liquid environments for zone 0,1 and 2.
  • Transmitter integrated, model and range to be specified.
  • Temperature sensor range from -200°C to 1600°C depending on the sheath material.
  • Thermowell connection by 1/2″NPT nipple union nipple.
  • Aluminium connection head DAN-AK with swing cover.
  • Stainless steel connection head optional.
  • Cable entry M20x1.5mm.
  • Replaceable 6mm insert with 20 or 40mm spring action.
  • Calibration K,T,J,E,N,R,S or B. Single or duplex.
Enquiry

TEX25A Thermocouple EEx ia With Integrated 2-Wire Transmitter is designed to measure temperatures in explosive gaseous or liquid environments for zone 0,1 and 2. Transmitter integrated, model and range to be specified. Temperature sensor range from -200°C to 1600°C depending on the sheath material. Thermowell connection by 1/2″NPT nipple union nipple. Aluminium connection head DAN-AK with swing cover. Stainless steel connection head optional. Cable entry M20x1.5mm. Replaceable 6mm insert with 20 or 40mm spring action. Calibration K,T,J,E,N,R,S or B. Single or duplex.

dpstar Group offers a wide range of standard or customized ATEX or IECEx certified temperature-sensors, single and multipoint for Gas zone 0, 1 and 2 with Exi, Exe and Exd, and Dust for zone 20, 21 and 22 approval. These sensors can be fitted with a integral certified head-mounted temperature transmitter or display unit with 4-20mA, Hart or Profibus communication.

Specification

CONSTRUCTION
Suitable for zone 0, 1 and 2
Ingress protection IP65
Ambient temp. range -40°C…+80°C
TRANSMITTER
Model and Type To be specified
CONNECTION HEAD
Material Cast aluminium
Cable entry M20 x 1,5 Other entries possible
MEASURING INSERT
Construction Replaceable, springloaded > 10 mm
Diameter 6 mm
Type Mineral insulated
THERMOCOUPLE
Calibration K, T, J, E, R, S, B, U, N
For duplex KK, TT, JJ, EE, RR, SS, BB, UU, NN
EXTENSION
Type Nipple – union – nipple
Material Stainless Steel 316
Style / Connection 1/2″ NPT male thread
Length “X” Customer to specify

Download

Explosion Proof Thermocouple_DpstarGroup
