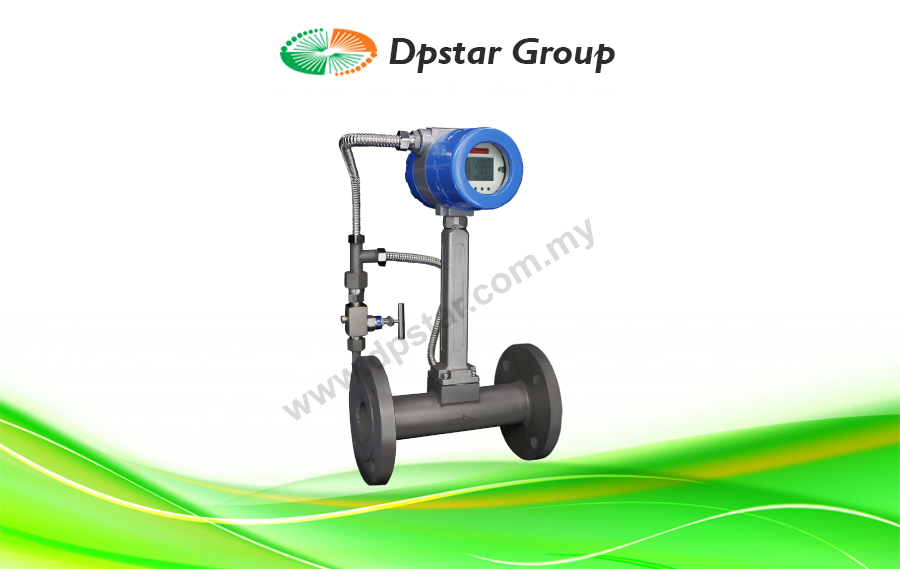

Vortex Flow Meter – Vetrix VT Series

Features

  • Ambient Temp. : -10 – +50oC
  • Accuracy: for liquid: ±1.0%; for gas: ± 1.5%
  • Body material: SS304; SS316
  • Signal output: 4-20mA, Pulse and Modbus RS485
Enquiry
Category:

The Vortex Flow Meter is used for measuring the flow velocity of gases or liquids in pipelines flowing full. The measuring principle is based on the development of a Karman Vortex shedding street in the wake of a body built into the pipeline. The periodic shedding of eddies occurs first from one side and then from the other side of a bluff body (Vortex-shedding body) installed perpendicular to the pipe axis. Vortex shedding generates a so-called “Karman Vortex street” with alternating pressure conditions whose frequency is proportional to the flow velocity.

Applications

  • Boiler industry (Steam measurement)
  • Compressed air industry
  • Textile industry
  • Paper Industry
  • Heating industry
  • Metallurgical industry
  • Plastics processing

Specification

Application Range (1)Gas; (2) Liquid; (3) Steam
MEASURED VALUE
Primary Measured Value Flow Rate
Secondary Measured Value Volume flow (Pressure and Temperature is available)
TEMPERATURE
Process Temperature T1 Level: -20℃…+100℃
T2 Level: -20℃…+250℃
T3 Level: -20℃…+350℃
T4 Level: -20℃…+420℃
Ambient Temperature -10℃…+50℃
PRESSURE
EN 1092-1 DN200…DN300: PN10
DN100…DN200: PN16
DN15…DN80: PN25
Other pressure in request
ASME B 16.5 1/2”…8”: 150 Ib RF
Other pressure in request
JIS 1/2”…8”: 10K
Other pressure in request
Reference Condition Flow conditions similar to EN 29104
Medium: Water/Gas/Steam
Temperature: -10℃…+30℃
Inlet Section: ≥10DN
Accuracy For Liquid: ±1.0% of rate
For Steam and Gas:±1.5% of rate
Body Material SS304
SS306
Converter Material Standard: Polyurethane coated die-cast aluminum

Ordering Information

Model Suffix Code Description
VT- 1 2 3 4 5 6 7 8 Vortex Flowmeter
Fluid L Liquid
G Gas/Air
S Steam
Diameter XXX Stand for diameter
015: DN 15; 050: DN 50; 100: DN 100; 300: DN 300
Structure S Compact type
L Remote type
Converter Type C Fluid: liquid; 24V DC; 4-20mA/Pulse output; Digital display; Ex
V 24V DC; 4-20mA/Pulse output ( V type is only for Gas/Steam application ); Digital display; Ex
D 24V DC; 4-20mA/Pulse output; Temperature & Pressure compensation; Digital display; Ex
DB 24V DC; 4-20mA/Pulse output; Temperature & Pressure compensation; Digital display; Ex
DA 24V DC; 4-20mA/Pulse output; Temperature & Pressure compensation; Digital display; Ex
DV 24V DC; 4-20mA/Pulse output; Temperature & Pressure compensation; Digital display; Ex
Notice: Modbus RS485 is optional for C, V, D,DA,DB,DV series
Dual power (24V DC+ Battery) is optional for C, V, D, DA,DB series
Body Material S4 SS304
S6 SS306
Explosion Proof BT ExdIIBT6
CT ExibIICT4
NA No explosion proof
Connection WAF Wafer connection
DXX D16: DIN PN 16 Flange; D25: DIN PN 25 Flange…
AXX A15: ANSI 150# Flange; A30: ANSI 300# Flange…
JXX J10: JIS 10K Flange; J20: JIS 20K Flange…
Temperature Rating T1 -20℃…+100℃
T2 -20℃…+250℃
T3 -20℃…+350℃
T4 -20℃…+420℃
