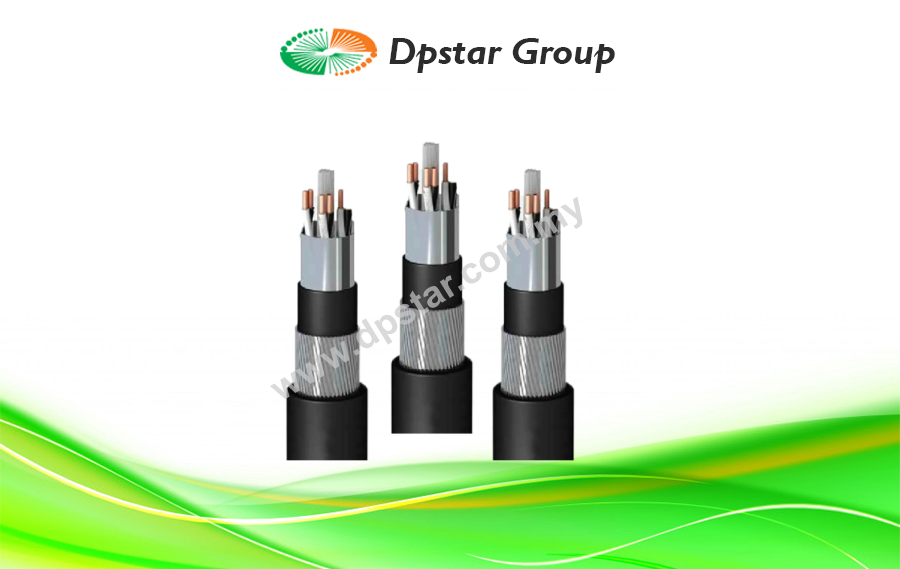

Armoured LK Instrumentation Cable – RE-2X(ST)YSWAY-FL

Features

– Flexible conductor class 5
– Minimum service temperature: -30ºC
– Maximum service temperature: 90ºC
– Maximum short-circuit temperature: 250ºC (max.5 s)
– Minimum bending radius: 10 x cable diameter
– Meter by meter marking
– Flame non-propagation IEC 60332-1
– Flame retardant (Fire non propagation) IEC 60332-3-22 (Cat A)
– UV Resistant

Enquiry

Applications

Screened fexible cable for data transmission between industrial equipment. The overall screen and individual (per pair) and overall screen make them especially suitable for their use in high electromagnetic noise environments

Specification

Conductor Multi stranded annealed electrolytic copper, class 5, (fexible) based on IEC 60228.
Cross section 0.75 mm2, 1.0 mm2, 1.5 mm2. .
Insulation XLPE (According to IEC 60502-1)
Core identification Pair: black & white.Each unit numbered.
Triad: black & white & red. Each unit numbered.
Other colours available on request
Laying-up Twisted pairs.
Overall Screen Aluminum + polyester (PEPT) tape with 100% coverage + tinned copper drain wire
Inner Sheath (Bedding) PVC fame retardant – Black color
Armour Galvanized steel wire armour., with 0,8 mm of nominal diameter, helilcally placed over the separation sheath.
Polyester (PET) tape (optional)
Outer sheath Flexible PVC fame retardant sheath, black color.
Blue for IS. (upon request)

Download

RE-2X(ST)YSWAY-FL – Armoured LK Instrumentation Cable-DpstarGroup
