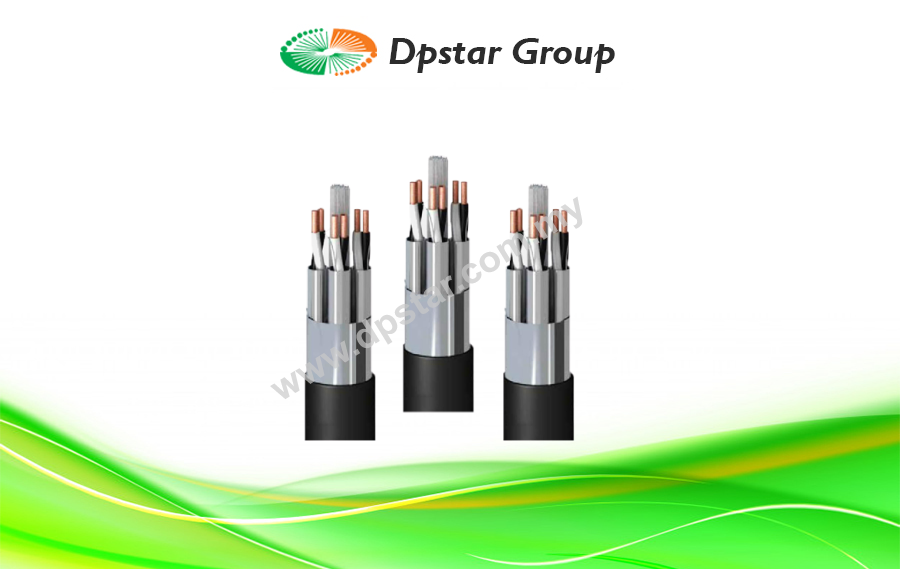

Non Armoured Individual LK Instrumentation Cable – RE-2X(ST)Y-FL PimF

Features

– Flexible conductor class 5
– Minimum service temperature: -30ºC
– Maximum service tempe-rature: 70ºC
– Maximum short-circuit temperature: 160ºC (max. 5 s)
– Minimum bending radius: 5 x cable diameter
– Meter by meter marking
– Flame non-propagation
– Flame retardant (Fire non propagation) IEC 60332-3-22 (Cat A)
– UV Resistant

Enquiry

Applications

Screened fexible cable for data transmission between industrial equipment. The overall screen and individual (per pair) make them especially suitable for their use in high electromagnetic noise environments.

Specification

Conductor Electrolytic cooper, class 5, (fexible) based on IEC 60228
Insulation XLPE (According to IEC 60502-1)
Core identification Pair: black & white.Each unit numbered.
Triad: black & white & red. Each unit numbered.
Other colours available on request.
Cabling Stranded Conductors in pairs.
Individual screen Individual polyester (per pair) composed by on aluminum / polyester tape with 100% coverage + tinned copper drain wire
Assembly of cores Cabled in concentric layers
Overall Screen Aluminum / polyester tape with 100% coverage + tinned copper drain wire.
Outer sheath Flexible PVC sheath, black color. The ripcord allows you to gently tear the outer-sheath allowing you to gently peel it away without damaging the screen

Download

RE-2X(ST)Y-FL PimF – Non Armoured Individual LK Instrumentation Cable-DpstarGroup
