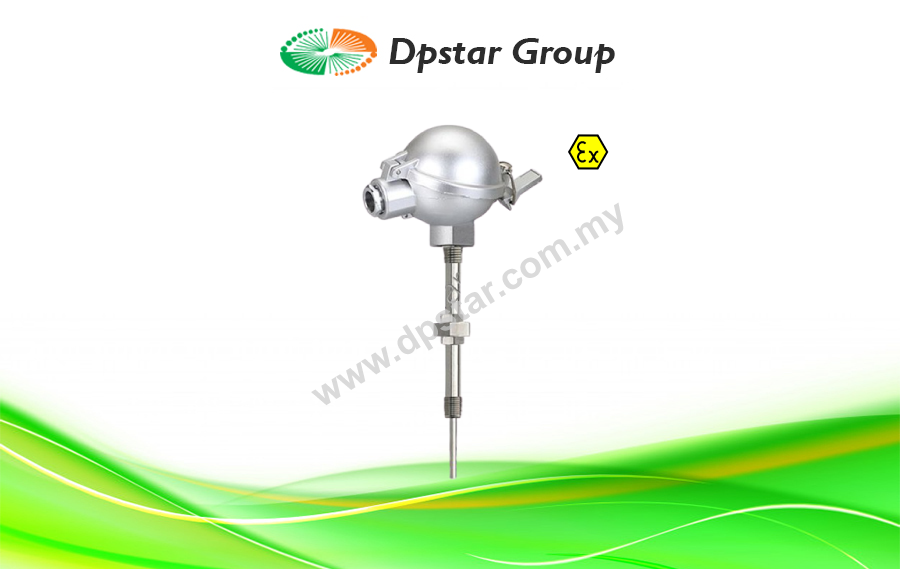

Explosion Proof EEx ia Thermocouple For Zone 0, 1 And 2 – Maltec-T TEX25A

Features

  • Designed to measure temperatures in explosive gaseous or liquid environments for Zone 0, 1 And 2.
  • Temperature sensor range from -200°C to 1600°C depending on the sheath material.
  • Thermowell connection by a nipple union nipple with 1/2″NPT connection.
  • Aluminium connection head with swing cover.
  • Cable entry M20x1.5mm.
  • Replaceable 6mm insert with 20mm spring action.
  • Calibration K,T,J,E,N,R,S or B, single or duplex.
  • Can be delivered with head-mounted transmitter.
  • Insertion length as required.
Enquiry

TEX25A Explosion Proof EEx ia Thermocouple is designed to measure temperatures in explosive gaseous or liquid environments for Zone 0, 1 And 2. Temperature sensor range from -200°C to 1600°C depending on the sheath material. Thermowell connection by a nipple union nipple with 1/2″NPT connection. Aluminium connection head with swing cover.Cable entry M20x1.5mm. Replaceable 6mm insert with 20mm spring action. Calibration K,T,J,E,N,R,S or B, single or duplex. Can be delivered with head-mounted transmitter. Insertion length as required.

dpstar Group offers a wide range of standard or customised ATEX or IECEx certified temperature-sensors, single and multipoint for Gas zone 0, 1 and 2 with Exi, Exe and Exd, and Dust for zone 20, 21 and 22 approval. These sensors can be fitted with a integral certified head-mounted temperature transmitter or display unit with 4-20mA, Hart or Profibus communication.

Download

Explosion Proof Thermocouple_DpstarGroup
