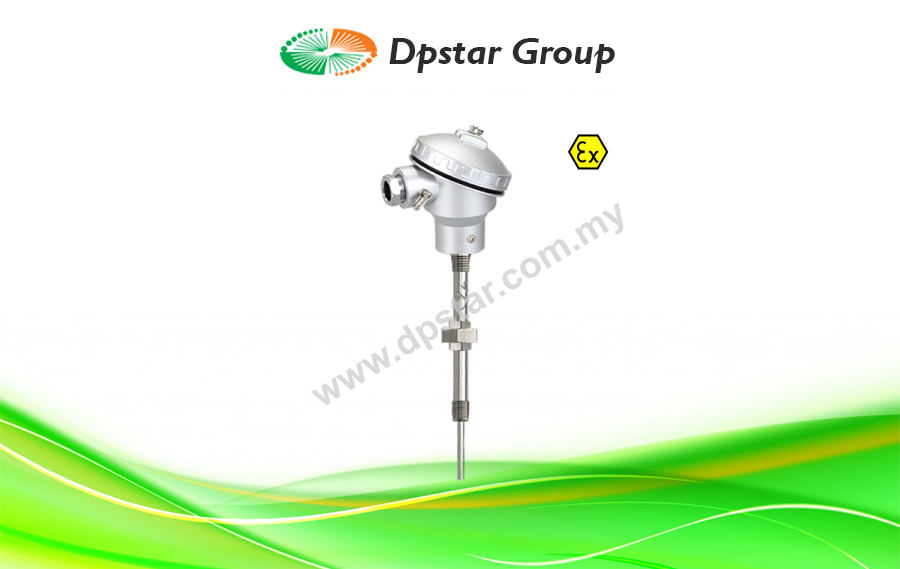

Explosion Proof Eex ia Thermocouple For Zone 0,1 And 2 – Maltec-T TEX25B

Features

    • For Zone 0,1 And 2.
    • Measure temperatures in explosive gaseous or liquid environments.
    • Temperature sensor range from -200°C to 1600°C depending on the sheath material.
    • Thermowell connection by a nipple union nipple with 1/2″NPT connection.
    • Aluminium connection head with threaded cover.

<

Enquiry

TEX25B Explosion Proof Eex ia Thermocouple For Zone 0,1 And 2. Designed to measure temperatures in explosive gaseous or liquid environments. Temperature sensor range from -200°C to 1600°C depending on the sheath material. Thermowell connection by a nipple union nipple with 1/2″NPT connection. Aluminium connection head with threaded cover. Stainless steel connection head optional. Cable entry M20x1.5mm. Replaceable 6mm insert with 10 or 40 mm spring action. Calibration K,T,J,E,N,R,S or B, single or duplex. Can be delivered with head- mounted transmitter. Insertion length as required.

dpstar Group offers a wide range of standard or customized ATEX or IECEx certified temperature-sensors, single and multipoint for Gas zone 0, 1 and 2 with Exi, Exe and Exd, and Dust for zone 20, 21 and 22 approval. These sensors can be fitted with a integral certified head-mounted temperature transmitter or display unit with 4-20mA, Hart or Profibus communication.

Specification

CONSTRUCTION
Suitable for zone 0, 1 and 2
Ingress protection IP65
Ambient temp. range -40°C…+80°C
CONNECTION HEAD
Material Cast aluminium epoxy coated
Cable entry M20 x 1,5
MEASURING INSERT
Construction Springloaded and replaceable
Diameter 6 mm
Type Mineral insulated
THERMOCOUPLE
Calibration K, T, J, E, N, R, S, B, U
For duplex KK, TT, JJ, EE, NN, RR, SS, BB, UU
EXTENSION
Type Nipple – union – nipple
Material Stainless Steel 316
Style / Connection 1/2″ NPT male thread
Length “X” Customer Specify

Download

Explosion Proof Thermocouple_DpstarGroup
