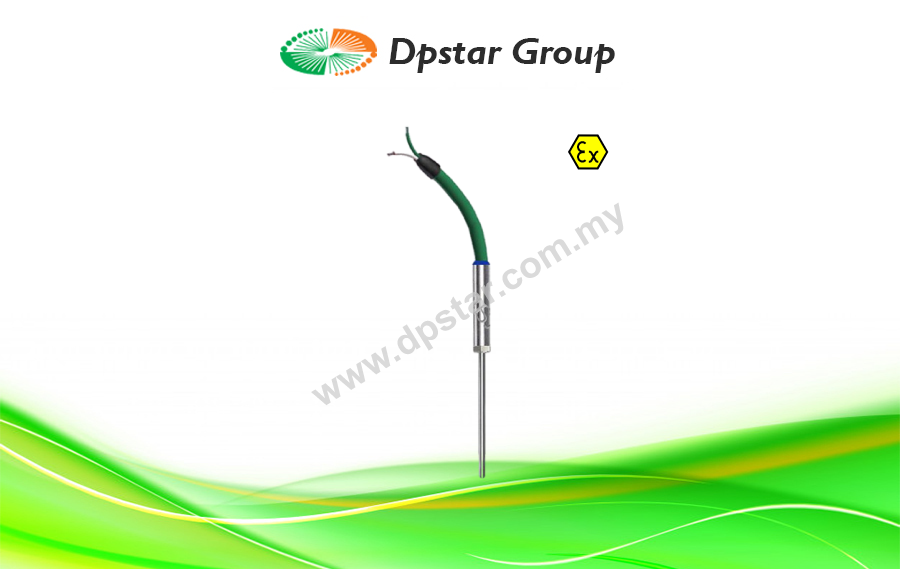

Explosion Proof EEx ia Thermocouple For Zone 0,1 And 2 – Maltec-T TEX25C

Features

  • For Zone 0,1 And 2.
  • Measure temperatures in explosive gaseous or liquid environments.
  • Temperature sensor range from -200°C to 1600°C depending on the sheath material.
  • Sensor with weatherproof connected cable, length as required.
  • Cable transition sealpot epoxy filled.
  • Sensor diameter from 3.2 to 12.7mm
  • Calibration K,T,J,E,N,R,S or B, single or duplex.
  • Process connection by an optional compression gland or feedthrough.
  • PVC, PE or PTFE cable with screen and drain wire.
  • Optional: armoured cable.
Enquiry

TEX25C Explosion Proof EEx ia Thermocouple For Zone 0,1 And 2.  Designed to measure temperatures in explosive gaseous or liquid environments. Temperature sensor range from -200°C to 1600°C depending on the sheath material. Sensor with weatherproof connected cable, length as required. Cable transition sealpot epoxy filled.  Sensor diameter from 3.2 to 12.7mm Calibration K,T,J,E,N,R,S or B, single or duplex. Process connection by an optional compression gland or feedthrough. PVC, PE or PTFE cable with screen and drain wire. Optional: armoured cable.

dpstar Group offers a wide range of standard or customized ATEX or IECEx certified temperature-sensors, single and multipoint for Gas zone 0, 1 and 2 with Exi, Exe and Exd, and Dust for zone 20, 21 and 22 approval. These sensors can be fitted with a integral certified head-mounted temperature transmitter or display unit with 4-20mA, Hart or Profibus communication.

Download

Explosion Proof Thermocouple_DpstarGroup
