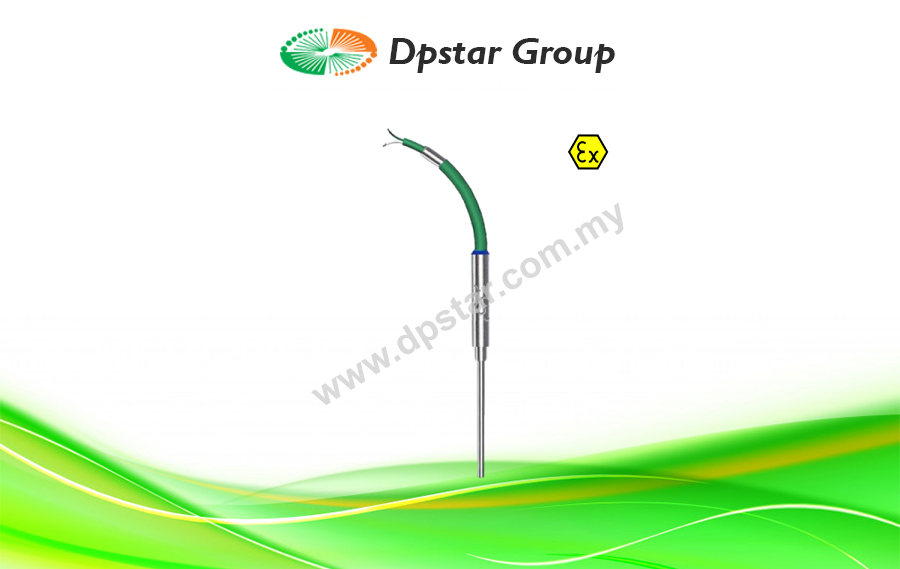

Explosion Proof EExd Thermocouple For Zone 1 and 2 – Maltec-T TEX35B

Features

  • Measure temperatures in explosive gaseous or liquid environments for Zone 1 & 2.
  • Temperature sensor range from -200°C to 1600°C depending on the sheath material.
  • Sensor diameter from 3.2mm to 11.2mm.
  • Calibration K, J, T, E, N, R, S or B. Single or duplex.
Enquiry

TEX35B Explosion Proof EExd Thermocouple is designed to measure temperatures in explosive gaseous or liquid environments for Zone 1 & 2. Temperature sensor range from -200°C to 1600°C depending on the sheath material. Sensor diameter from 3.2mm to 11.2mm. Calibration K, J, T, E, N, R, S or B. Single or duplex.

dpstar Group offers a wide range of standard or customized ATEX or IECEx certified temperature-sensors, single and multipoint for Gas zone 0, 1 and 2 with Exib, Exe and Exd, and Dust approval. These sensors can be fitted with an integral certified head-mounted temperature transmitter or display unit with 4-20mA, Hart or Profibus communication.

Specification

CONSTRUCTION
Suitable for zone 1 and 2
Protection IP67
Ambient temp. range -20°C..+70°C
SHEATH
Construction Mineral insulated ( MgO )
Material SS316
Diameter “D” Customer to specify
Length “L” Customer to specify
THERMOCOUPLE
Calibration K, J, T, E, N, R, S, B, U
For duplex KK, TT, JJ, EE, NN, RR, SS, BB, UU
LEAD WIRE
Insulation PVC
Wire length “K” Customer to specify

Download

Explosion Proof Thermocouple_DpstarGroup
