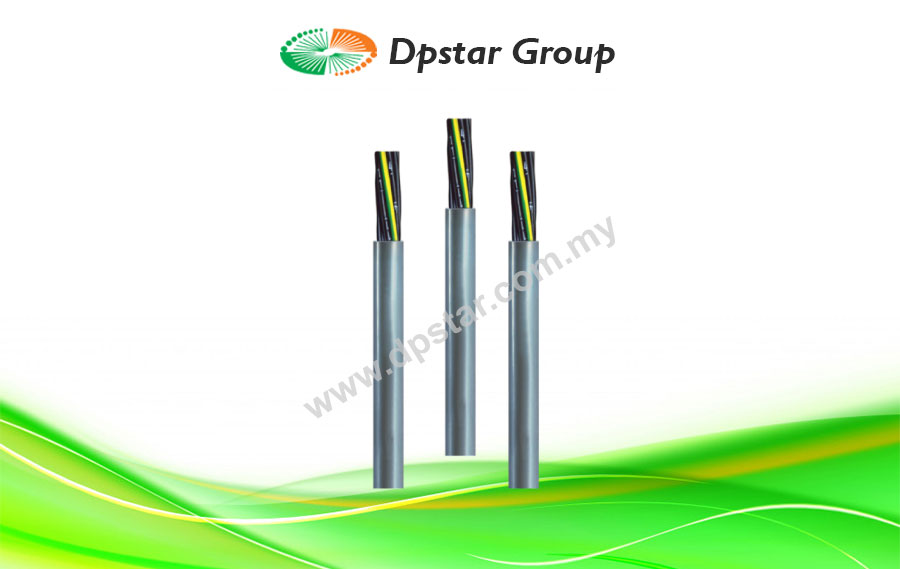

Flexible Control Cable – Y-JZ / – OZ

Features

  • Stranded bare Cu conductor, fine wire
  • Core insulation: special PVC
  • Sheath colour: RAL 7001 grey
  • OZ = without protective conductor
  • Cores twisted in layers, with optimal lay lengths
  • Outer sheath: special PVC
  • Core identification: black cores with printed consecutive number coding with green-yellow protective conductor (3 cores and over) in the outer layer
Enquiry
Category:

Applications

Used as energy or connecting cable or as measuring and control cable in machine tool manufacturing, plant engineering and on assembly and production lines. Suitable for stationary installation or flexible applications with unrestricted mobility without forced movement control and without exposure to tensile load. Installation in dry, damp and wet environments. When used for outdoor applications, adequate protection against direct exposure to sunlight must be ensured and the specified temperature limits must be observed.

Specification

Rated Voltage
Uo/U 300/500
Test Voltage 4000 V
Insulation resistance at +20° C ≥ 20 MOhm x km
Bending radius 15 x cable diameter
Temperature Range
      Flexible -5° C to +70° C
      Stationary -30° C to +70° C
Flame Retardant  IEC 60332-1
