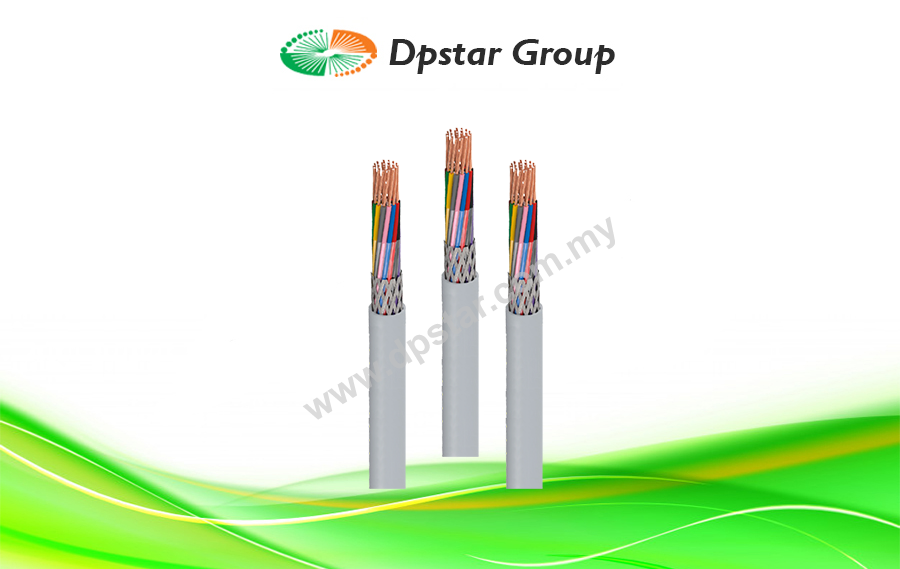

LiYCY Control Cable

Features

  • Low Voltage
  • Flame Retardant
  • Voltage Rating Uo/U: 250/250V
  • Voltage Test: 1.2kV
  • Temperature Rating Fixed: -30°C to +180°C Installation: -5°C to +70°C
  • Minimum Bending Radius
  • Fixed Installation: 6 x overall diameter”
Enquiry
Category:

LiYCY cable can be used for signal transmission between electronic devices, in computer systems or process control units with increased electromagnetic compatibility requirements.

Standards
VDE 0482-332-1-2, EN 60811-2
Flame Retardant according to: IEC 60332-1

Construction

Conductor
Class 5 Fine Stranded Bare Copper

Insulation
PVC (Polyvinyl Chloride)

Screen
TCWB (Tinned Copper Wire Braid)

Outer Sheath
PVC (Polyvinyl Chloride)

Specification

0.75 mm² Conductor Size
Conductor Size Approximate Net Weight Of Cu Approximate Net Weight Of Cables Maximum Conductor Resistance at Temperature 20°C
mm² kg/km kg/km
2 * 0.75 25.98 38.5 26
3 * 0.75 32.85 45.6 26
4 * 0.75 41.37 55.6 26
5 * 0.75 49.35 65.1 26
7 * 0.75 64.96 82.7 26
8 * 0.75 74.16 94.2 26
10 * 0.75 91.35 114.6 26
12 * 0.75 106.17 130.4 26
18 * 0.75 153.48 182.8 26
25 * 0.75 207.72 243.5 26
30 * 0.75 244.37 282.6 26
1 mm² Conductor Size
Conductor Size Approximate Net Weight Of Cu Approximate Net Weight Of Cables Maximum Conductor Resistance at Temperature 20°C
mm² kg/km kg/km
2 * 1.00 31.67 46.6 19.5
3 * 1.00 41.39 56.6 19.5
4 * 1.00 51.91 68.9 19.5
5 * 1.00 62.76 81.7 19.5
7 * 1.00 83.12 104.4 19.5
10 * 1.00 117.31 145.4 19.5
12 * 1.00 136.9 166.2 19.5
18 * 1.00 199.05 234.6 19.5
25 * 1.00 270.56 314 19.5
1.5 mm² Conductor Size
Conductor Size Approximate Net Weight Of Cu Approximate Net Weight Of Cables Maximum Conductor Resistance at Temperature 20°C
mm² kg/km kg/km
2 * 1.5 42.16 60.4 13.3
3 * 1.5 55.88 74.5 13.3
4 * 1.5 71.49 92.3 13.3
5 * 1.5 86.5 109.6 13.3
6 * 1.5 101.92 127.6 13.3
7 * 1.5 115.53 141.6 13.3
8 * 1.5 131.75 161.4 13.3
10 * 1.5 163.84 198.4 13.3
12 * 1.5 191.62 227.6 13.3
14 * 1.5 220.6 258.9 13.3
16 * 1.5 249.79 290.8 13.3
19 * 1.5 294.69 338.5 13.3
24 * 1.5 394.72 448.7 13.3
27 * 1.5 437.24 492.7 13.3
37 * 1.5 583.86 648.9 13.3
