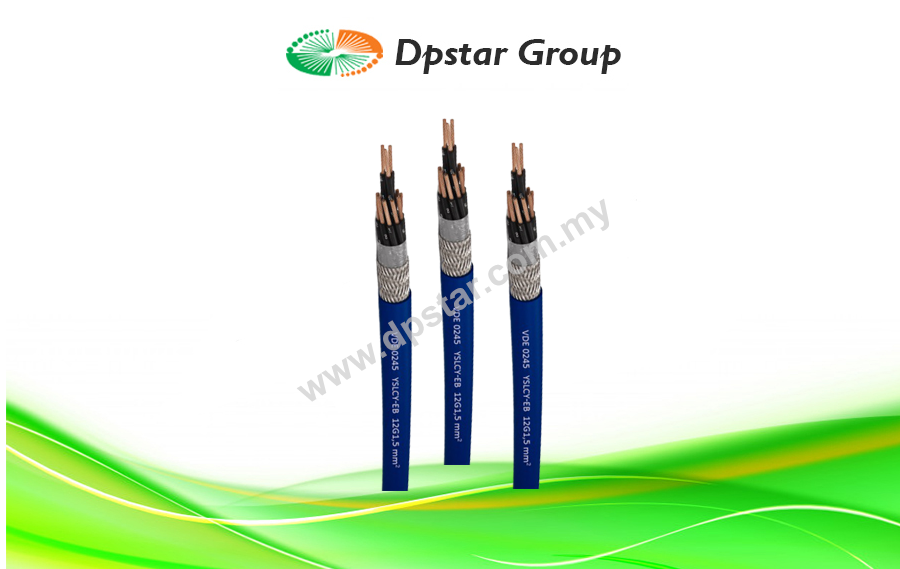

Flexible Signal Cable PVC Insulated With Cu Screen & Blue Coloured PVC Sheath For EX-Zones – YSLCY-EB

Features

  • For application in Ex-zones (with possible explosion danger), for equipment with independent supply source.
  • The screen of braided copper wires serves as protection against electromagnetic impacts and signal disturbances.
  • Lightweight and relatively thin, resistant to medium mechanical loads, used for fixed or limitedly mobile installations (not permanently mobile) without strains.
  • Laid in dry or damp premises, the outdoor application only under protection against UV irradiation.
  • Not intended for laying in ground or water.
Enquiry
Category:

Dpstar Group is your one-stop solution provider for Cables and Wires. We are the leading cable supplier in Malaysia, specializing in power cables, control instrument cables, Compensating Cables, and Heat Resistance Cables. As a leading control cable supplier, we have vast experience in advising on control cable selection. Our cables are supplied to meet the stringent standards of quality, performance, and functionality, with the ultimate goal of customer satisfaction.

The YSLCY-EB Flexible Signal Cable for application in Ex-zones (with possible explosion danger), for equipment with independent supply source. The screen of braided copper wires serves as protection against electromagnetic impacts and signal disturbances. Lightweight and relatively thin, resistant to medium mechanical loads, used for fixed or limitedly mobile installations (not permanently mobile) without strains. Laid in dry or damp premises, the outdoor application only under protection against UV irradiation. Not intended for laying in ground or water.

Specification

Construction
Conductor Bare copper conductor, fine wire stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295
Insulation PVC compound TI2 acc. to HD 21.1 / DIN VDE 0281 or YI2 acc. to VDE 0207.4, with green-yellow core, always in external layer (≥ 3 cores) or without green-yellow core
Core Marking (acc. to DIN VDE 0293) black numbered
Separator Transparent plastic foil
Screen Braid of tinned copper wires of 0,16 mm diameter, with min 85% overlap
Sheath PVC compound TM2 acc. to HD 21.1 / DIN VDE 0281 or YM2 acc. to VDE 0207.5
Sheath Colour Blue (RAL 5015)
Technical Data
Temperature Range
During Installation -5 °C up to +50 °C
Fixed Installed -30 °C up to +70 °C
Nominal Voltage Uo /U = 300/500 V
Test Voltage min. 4000 V
Insulation Resistance min. 20 MΩ x km
Min. Inner Bending Radius
Fixed Installed  6D
At Application With Bending 20D
Behaviour In Fire IEC 60332-1
Dimensions – Number of Cores x Conductor Cross-Section Construction Of Individual Conductor External Diameter Conductor Resistance at 20 °C Cu Weight Cable Weight  Packing*
N x mm² nominal n x mm mm max. Ω/mm kg/km nominal kg/km
2 x 0.75 24 x 0.20 6.2 26 43 59 CUT
3 x 0.75 24 x 0.20 6.5 26 54 66 CUT
4 x 0.75 24 x 0.20 7 26 63 77 CUT
5 x 0.75 24 x 0.20 7.7 26 77 93 CUT
7 x 0.75 24 x 0.20 8.3 26 108 130 CUT
12 x 0.75 24 x 0.20 10.9 26 166 202 CUT
18 x 0.75 24 x 0.20 12.7 26 228 292 CUT
24 x 0.75 24 x 0.20 26 250 435 CUT
25 x 0.75 24 x 0.20 14.8 26 280 CUT
2 x 1 32 x 0.20 6.5 19.5 61 65 CUT
3 x 1 32 x 0.20 6.8 19.5 77 80 CUT
4 x 1 32 x 0.20 19.5 88 98 CUT
5 x 1 32 x 0.20 8.1 19.5 105 127 CUT
7 x 1 32 x 0.20 8.8 19.5 132 158 CUT
12 x 1 32 x 0.20 11.5 19.5 205 260 CUT
18 x 1 32 x 0.20 13.9 19.5 270 380 CUT
24 x 1 32 x 0.20 19.5 320 493 CUT
25 x 1 32 x 0.20 15.9 19.5 354 CUT
2 x 1.5 30 x 0.25 7.1 13.3 72 88 CUT
3 x 1.5 30 x 0.25 7.5 13.3 99 100 CUT
4 x 1.5 30 x 0.25 13.3 121 126 CUT
5 x 1.5 30 x 0.25 8.9 13.3 138 160 CUT
7 x 1.5 30 x 0.25 9.9 13.3 175 208 CUT
12 x 1.5 30 x 0.25 13 13.3 279 338 CUT
18 x 1.5 30 x 0.25 15.6 13.3 404 479 CUT
24 x 1.5 30 x 0.25 13.3 448 690 CUT
25 x 1.5 30 x 0.25 17.9 13.3 530 CUT

*Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length
