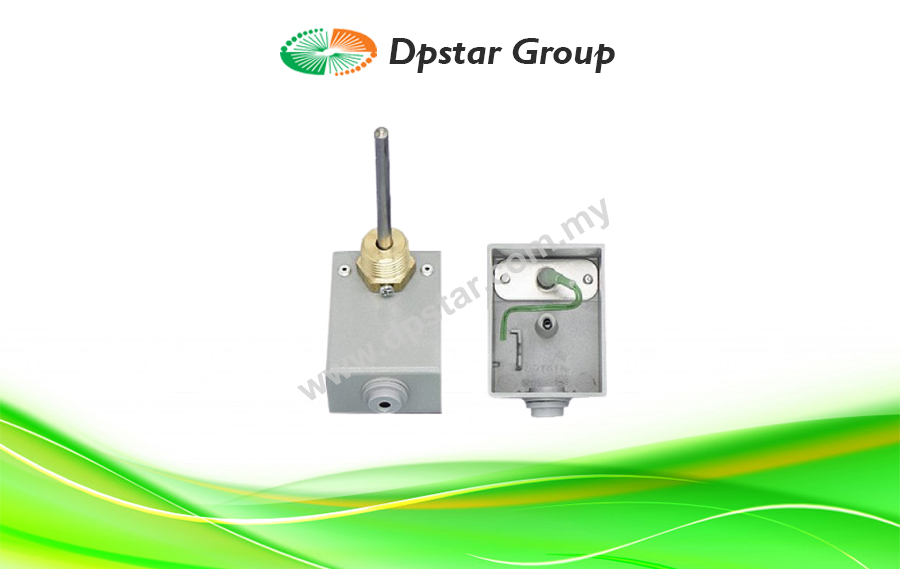

Immersion Temperature Sensor Polycarb Enclosure – Maltec-T MT-703-B

Features

  • Designed to withstand temperature extreme, mechanical shock and vibration.
  • 304 SS probe crimp attached to the enclosure for a ow profile mating surface.
  • Patented locking thermowell adapter, single screw cover attachment, are some of the features which improve reliability and lower installation costs.
  • MT-703-B sensors provide a cost effective and reliable solution for hot/ chilled water.
  • Maximum tempearture 200°C
Enquiry

Polycarbonate enclosure designed to withstand temperature extreme, mechanical shock and vibration. 304 SS probe crimp attached to the enclosure for a ow profile mating surface. Patented locking thermowell adapter, single screw cover attachment, are some of the features which improve reliability and lower installation costs. MT-703-B sensors provide a cost effective and reliable solution for hot/ chilled water, Maximum temp 200`C

Specification

Platinum RTD Sensors ± 0.1% @ 0 C, Alpha: 385 per DIN 43760
Nickel RTD Sensors (#2) ± 0.5 C @ 0 C, 5000 PPM/K T.C.R.
Nickel RTD Sensors (#4) ± 0.5 F @ 70 F/21.1 C, 6000 PPM/K T.C.R.
Balco RTD Sensors ± 0.5 F @ 70 F/21.1 C, 4300 PPM/K T.C.R.
Thermistor Sensors ± 0.2 C interchangeability @ 77 F/25 C
Probe Material 1/4″ / 6.3mm O.D, 0.020″ / 0.5mm wall 304 Stainless Steel
Flange Material Galvanized Steel
Bulkhead Fitting Brass with poly compression sleeve
Plastic Enclosure Polycarbonate 30% glass filled, rated UL 94V-5-0
Steel NEMA-1/IP-30 18 Ga. Galvanized Steel
Steel NEMA-4/IP-65 18 Ga. Cold Rolled Steel, Baked on Enamel
Operating Temp -40F/-40C to 210F/100C
Ambient Temp -40F/-40C to 160F/70C
Warranty Five Years (Lifetime on Moisture Migration)

Ordering Information

MT-703

Download

Maltec-T HVAC Temperature Sensor_DpstarGroup
