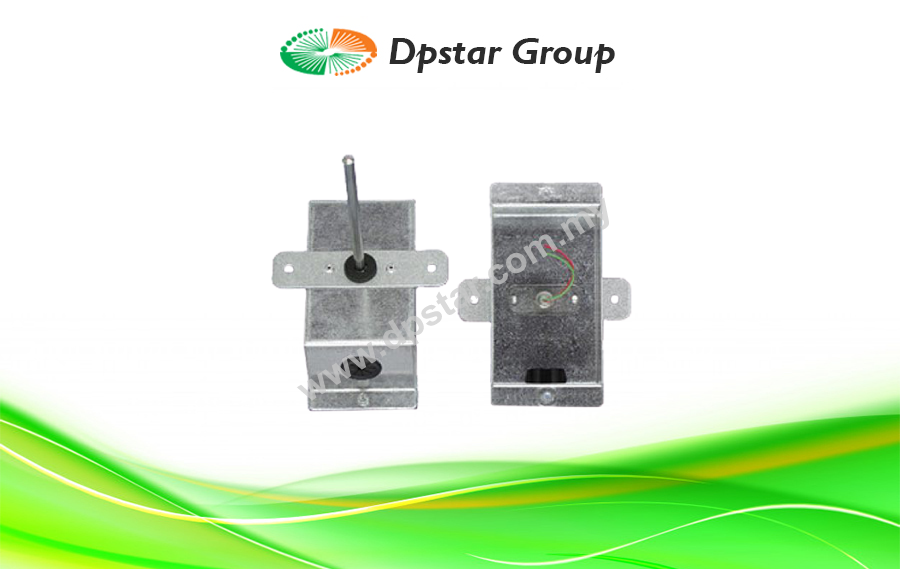

Temperature Sensor Aluminum Enclosure – Maltec-T MT-702-B

Features

  • Designed for all industrial and commercial duct temperature sensing applications.
  • Hermitically sealed, fast response 304 SS probe crimped attached to the enclosure flange to provide a low profile mating surface.
  • External mounting bracket to conform to uneven surfaces, some of the features which improve reliability and lower installation cost.
  • Maximum temperature 200°C.
Enquiry

Aluminum enclosure designed for all industrial and commercial duct temperature sensing applications. Hermitically sealed, fast response 304 SS probe crimped attached to the enclosure flange to provide a low profile mating surface, external mounting bracket to conform to uneven surfaces, some of the features which improve reliability and lower installation cost, Maximum temp 200`C.

Specification

Platinum RTD Sensors ± 0.1% @ 0 C, Alpha: 385 per DIN 43760
Nickel RTD Sensors (#2) ± 0.5 C @ 0 C, 5000 PPM/K T.C.R.
Nickel RTD Sensors (#4) ± 0.5 F @ 70 F/21.1 , 6000 PPM/K T.C.R.
Balco RTD Sensors ± 0.5 F @ 70 F/21.1 C, 4300 PPM/K T.C.R.
Thermistor Sensors ± 0.2 C interchangeability @ 77 F/25 C
Probe Material 1/4″ / 6.3mm O.D, 0.020″ / 0.5mm wall 304 Stainless Steel
Flange Material Galvanized Steel
Bulkhead Fitting Brass with poly compression sleeve
Plastic Enclosure Polycarbonate 30% glass filled, rated UL 94V-5-0
Steel NEMA-1/IP-30 18 Ga. Galvanized Steel
Steel NEMA-4/IP-65 18 Ga. Cold Rolled Steel, Baked on Enamel
Operating Temp -40F/-40C to 210F/100C
Ambient Temp -40F/-40C to 160F/70C
Warranty Five Years (Lifetime on Moisture Migration)

Ordering Information

MT-702

Download

Maltec-T HVAC Temperature Sensor_DpstarGroup
