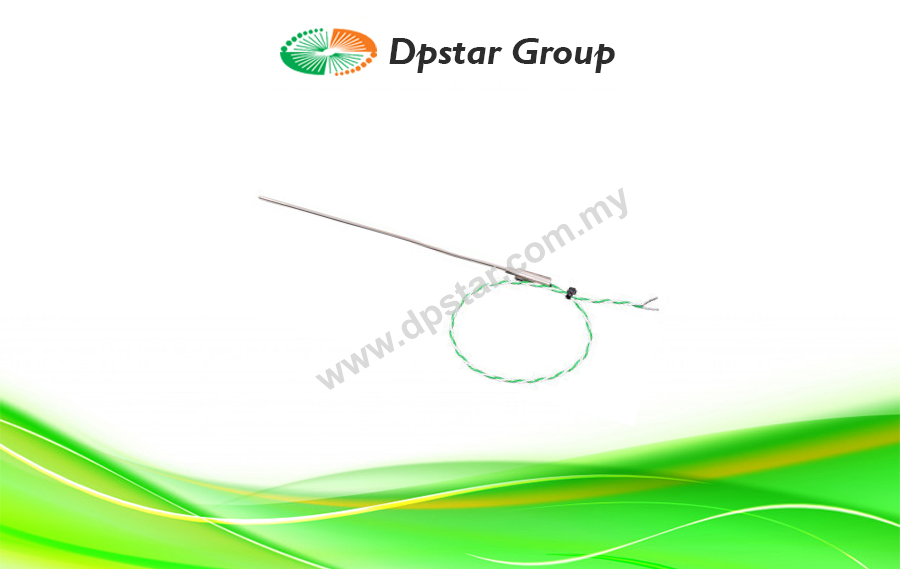

Maltec-T MI Thermocouple With Pot Seal & Flexible Tails

Features

  • Inexpensive termination
  • Will withstand tough industrial use
Enquiry

Dpstar provides Top Thermocouple Solutions with High-Quality Assurance. We’ve made mineral insulated thermocouples for over 30 years and today we are considered the best choice for custom-built temperature sensors in Malaysia. We continue to apply our expertise and invest in the latest technology to provide our customers with the highest quality temperature sensors available. If you have an existing sensor design or are unsure what you need we’ll be able to find you to get the right sensor for your process.

Mineral insulated thermocouples consist of an outer metal sheath which protects the thermocouple elements from damage and contamination, this sheath is malleable so mineral insulated thermocouples can be easily bent and formed into a variety of shapes to suit your application. The inner thermocouple elements are insulated with magnesium oxide powder, tightly packed so no air is trapped inside, this provides great thermal conductivity. This construction provides an incredibly durable temperature sensor that can be adapted to a wide variety of applications.

Maltec-T MI Thermocouple With Pot Seal & Flexible Tails is a very common robust sensor with a wide range of applications. One of our most popular designs of thermocouple. Can also be known as a “bare leads” MI thermocouple.

Wide Variety in Designs and Uses

MI Thermocouples are very tough and can withstand up to 1250°C (depending on design and thermocouple type) making them perfect for a wide variety of industrial uses such as ovens, kilns, and furnaces. There is a wide range of options for our MI thermocouples. They can be constructed with various diameters and materials of the sheath, many different thermocouple types, and with our laser welder, mineral insulated thermocouple lengths are practically limitless.

Special Options

  • Duplex
  • Diameters between 0.5 and 10.8mm
  • Reduced tips
  • Sensors bent to shape
  • Compression fitting
  • Weld pads or weld on tips
  • Cold end seal to 350 ° C
  • Extended tails
  • Standard or mini plugs (or sockets) fitted to tails
  • Insulated exposed or grounded junction
  • Tagging

Mineral-Insulated Thermocouples are used in:

  • Chemical plants
  • Power plants
  • Pipe systems
  • Engine-building
  • Test rigs

Advantages

  • Small over all dimension and high flexibility, which enable temperature measurement in locations with poor accessibility.
  • Good mechanical strength.
  • Protection of the thermo element wires against oxidation, corrosion, and contamination.
  • Fast thermal response.

Specification

Temperature Range -200 to 1250 ° C depending on thermocouple sensor type
Common Sensor Types K, J, N, T, E
Common Diameters  Ø 1.5mm, 3.0mm, 6.0mm
Common Sheaths Inconel, 316 SS, 321 SS, 310 SS, Prosily.
Cold End Max Temp 150 ° C
Tail Detail 75mm tails, 10mm Tinned

Download

Maltec-T Thermocouple_DpstarGroup
