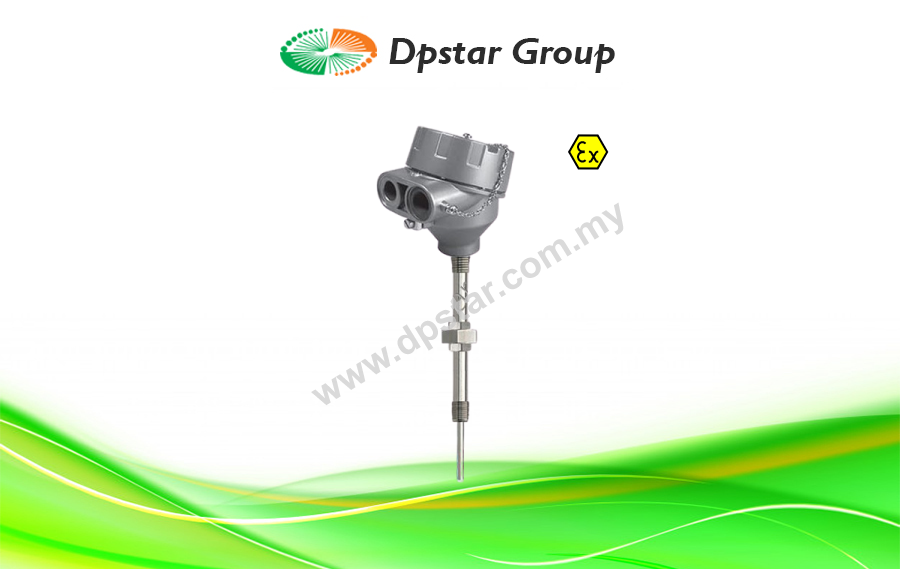

Explosion proof EEx d Thermocouple For Zone 1 And 2 – Maltec-T TEX30

Features

  • Measure temperatures in explosive gaseous or liquid environments for Zone 1 and 2.
  • Temperature sensor range from -200°C to 1600°C depending on the sheath material.
  • Thermowell connection by a 1/2″NPT nipple union nipple.
Enquiry

TEX30 Explosion proof EEx d Thermocouple is designed to measure temperatures in explosive gaseous or liquid environments for Zone 1 and 2. Temperature sensor range from -200°C to 1600°C depending on the sheath material. Thermowell connection by a 1/2″NPT nipple union nipple. Aluminium or SS316 Eexd connection head. Cable entry M20x1.5mm or optional 2 entries. Sensor side with flame path fire lock. Replaceable 6mm insert with 10mm spring action. Calibration K,T,J,E,N,R,S or B, single or duplex. Can be delivered with head-mounted transmitter. Insertion length as required.

dpstar Group offers a wide range of standard or customized ATEX or IECEx certified temperature-sensors, single and multipoint for Gas zone 0, 1 and 2 with Exi, Exe and Exd, and Dust for zone 20, 21 and 22 approval. These sensors can be fitted with a integral certified head-mounted temperature transmitter or display unit with 4-20mA, Hart or Profibus communication.

Specification

CONSTRUCTION
 TEX30 Explosion proof EEx d Thermocouple
Suitable for zone 1 and 2
Ingress protection IP66
Ambient temp. limits -20°C…+65°C standard, -40°C…+65°C optional.
CONNECTION HEAD
Material Cast aluminium or SS316
Cable entry Single M20 x 1,5, two entries optional
Cover Threaded with retaining chain
Fire Lock At process side
MEASURING INSERT
Construction Replaceable, springloaded > 10 mm
Diameter 6.0 mm
Type Mineral insulated
THERMOCOUPLE
Calibration K, T, J, E, R, S, B, U, N
For duplex KK, TT, JJ, EE, RR, SS, BB, UU, NN
EXTENSION
Type Nipple – union – nipple
Material Stainless Steel 316
Style / Connection 1/2″ NPT male thread
Length “X” Customer Specify

Download

Explosion Proof Thermocouple_DpstarGroup
