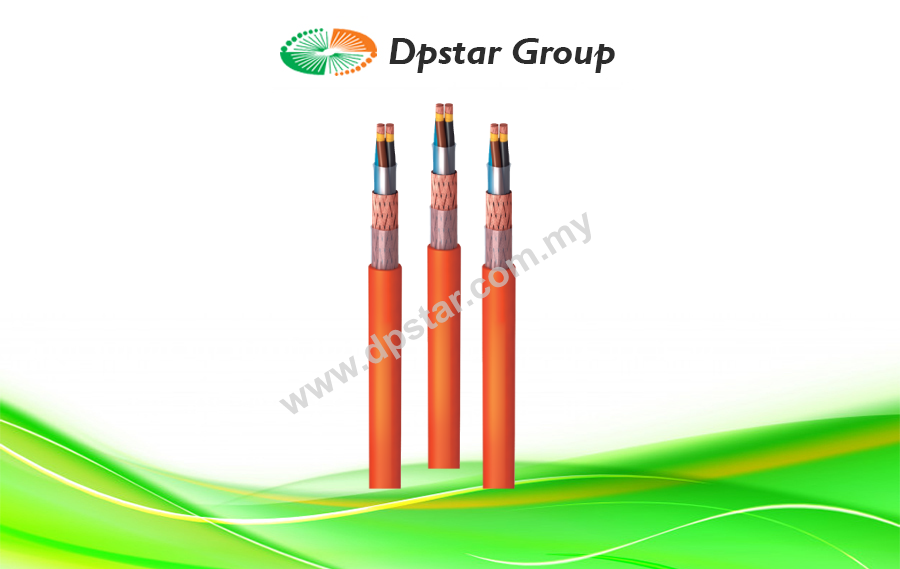

Marine Armoured And Fire Resistant Power Cable – XTCUZ1-K(AS+)

Features

– Flexible conductor class 5
– Minimum service temperature for fixed installation: -40ºC
– Maximum service temperature: 90ºC
– Maximum short-circuit temperature: 250ºC (maximum 5 s)
– Minimum bending radius: 5 x cable diameter
– Fire resistant
– Flame non-propagation
– Fire non-propagation
– LSZH
– Low smoke emission: Light transmittance > 60%
– Low corrosive gases emission
– Environmentally friendly
– Mechanical stress impact: AG3. High severity
– Outdoor installation: permanent
– Water resistance: AD3 sprays
– Chemical & oil resistance: acceptable

Enquiry
Category:

Applications

The Toxfree Marine Plus XTCuZ1-K (AS+) is specially designed to transmit electric power in the presence of fire, assuring electric supply to emergency circuits, like signaling lights, smoke extractors, acustic alarms, water pumps, etc. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places and marine applications.

Specification

Conductor Electrolytic copper, class 5 (flexible), based on EN 60228
Insulation Mica Tape + LSZH XLPE 90ºC
The standard identification is the following 1 x ……………………………….. Black
2 x ……………………………….. Blue + Brown
3 x ……………………………….. Brown + Black + Grey
4 x ……………………………….. Blue + Brown + Black + Grey
5 or more conductors …… White with black numbers
Armour bedding Halogen free barrier. Polyester tape
Armour Copper braid screen
Outer sheath LSZH polyolephine outer sheath SHF1 type. Orange colour, non-toxic, fire retardant and fire resistant.

Download

XTCUZ1-K(AS+) – Marine Armoured & Fire Resistant Power Cable-DpstarGroup
