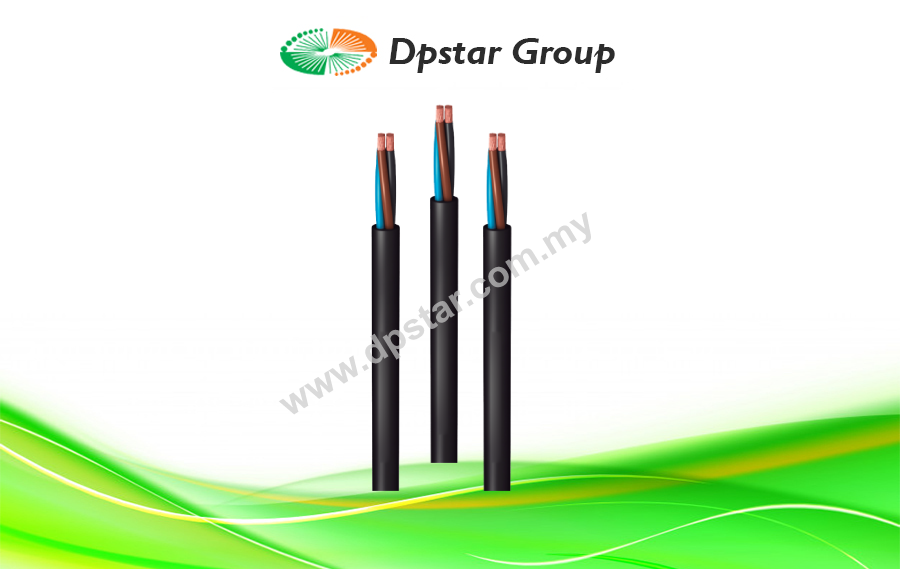

Marine Power Cable – XZ1-K(AS)

Features

– Flexible conductor class 5
– Minimum service temperature for fixed installation: -40ºC
– Maximum service temperature: 90ºC
– Maximum short-circuit temperature: 250ºC (maximum 5 s)
– Minimum bending radius: 5 x cable diameter
– Meter by meter marking
– Flame non-propagation
– Fire non-propagation
– LSZH
– Low smoke emission: Light transmittance > 60%
– Low corrosive gases emission
– Environmentally friendly

Enquiry
Category:

Applications

The Toxfree Marine XZ1-K (AS) cable with zero halogens is a high security cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in marine applications.

Specification

Conductor Electrolytic copper, class 5 (flexible), based on EN 60228
Insulation LSZH XLPE 90ºC
The standard identification is the following 1 x ……………………………….. Black
2 x ………………………………. Blue + Brown
3 x ……………………………….. Brown + Black + Grey
4 x ……………………………….. Blue + Brown + Black + Grey
5 or more conductors …… White with black numbers
Outer sheath LSZH polyolephine outer sheath SHF1 type. Black colour, non-toxic and fire retardant.

Download

XZ1-K(AS) – Marine Power Cable-DpstarGroup
