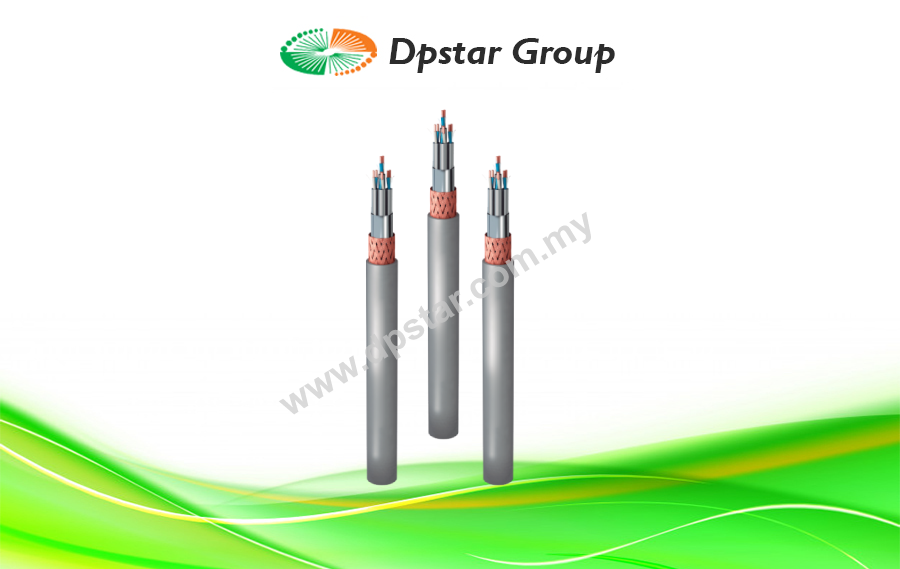

Marine Armoured Instrumentation Cable – XOxTCuZ1-K (AS)

Features

– Flexible conductor class 5
– Minimum service temperature for fixed installation: -40ºC
– Maximum service temperature: 90ºC
– Electric fields resistant
– Minimum bending radius: 5 x cable diameter
– Meter by meter marking
– Flame non-propagation
– Fire non-propagation
– LSZH
– Low smoke emission: Light transmittance > 60%
– Low corrosive gases emission
– Environmentally friendly
– Mechanical stress impact: AG3. High severity
– Outdoor installation: permanent
– Water resistance: AD3 sprays
– Chemical & oil resistance: acceptable

Enquiry
Category:

Applications

The Toxfree Marine XOxTCuZ1-K (AS) cable with zero halogens is a high security instrumentation cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in marine applications.

Specification

Conductor Electrolytic copper, class 5 (flexible), based on EN 60228.
Insulation LSZH XLPE 90ºC
The standard identification is the following per pair 1 x ……………………………….. Blue
1 x ……………………………….. White
Each pair is numbered
Screen Individual and/or collective aluminium / polyester tape with tinned copper drain
wire
01 … Individual screen (per pair)
O2 … Overall screen (per cable)
03 … Individual and overal screen
Armour bedding Polyester tape.
Armour Copper braid screen
Outer sheath LSZH polyolephine outer sheath SHF1 type. Grey colour, non-toxic and fire retardant.
Fire resistant version also available.
