Offshore Instrumentation 250V Individually Screened – RFOU(c) S2/S6

Features

– Maximum service temperature: 90ºC
– Fire non-propagation
– Mud resistance NEK TS 606
– Chemical & oil resistance: excellent
– LSZH
– Low smoke emission: Light transmittance > 60%
– Low corrosive gases emission
– Outdoor installation: permanent
– Mechanical stress impact: AG3. High severity
– Water resistance: AD4 splashes
– UV-resistant
– Electromagnetically protection

Enquiry
Category:

Aplications

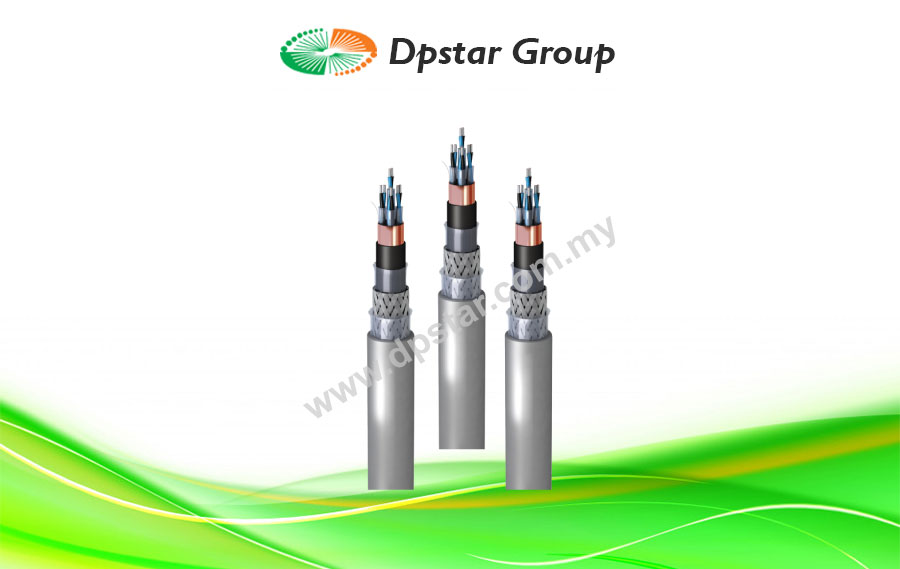

Offshore instrumentation 250 V individually screened cable. Heavy duty, mud resistant, instrumentationi cables for Offshore applications. halogen free, flame and fire non propagator. Excellent resistance to oils, abrasion, petrochemical fluids, moisture and salt water. Based on IEC 60092-376 and NEK TS 606. These cable offer excellent performance in the harsh environments encountered offshore. Suitable for fixed installations in vessels and oil rigs.

Specification

Conductor Class 5 tinned copper, based on IEC 60228
Insulation Halogen Free Ethylene propylene, type EPR according to IEC 60092-351
Standard identification 1x Blue
2x Black
Each pair is numbered 3x Brown (for traids)
Screen Collective polyester/copper tape with tinned copper drain wire.
Bedding Halogen Free-compound.
Braid/Armour Tinned copper wire braid.Outer sheath
Mud resistant thermosetting compound, black colour, low smoke and halogen free, type SHF MUD.

Download

RFOU(c) S2-S6 – Offshore Instrumentation 250V Individually Screened-DpstarGroup
