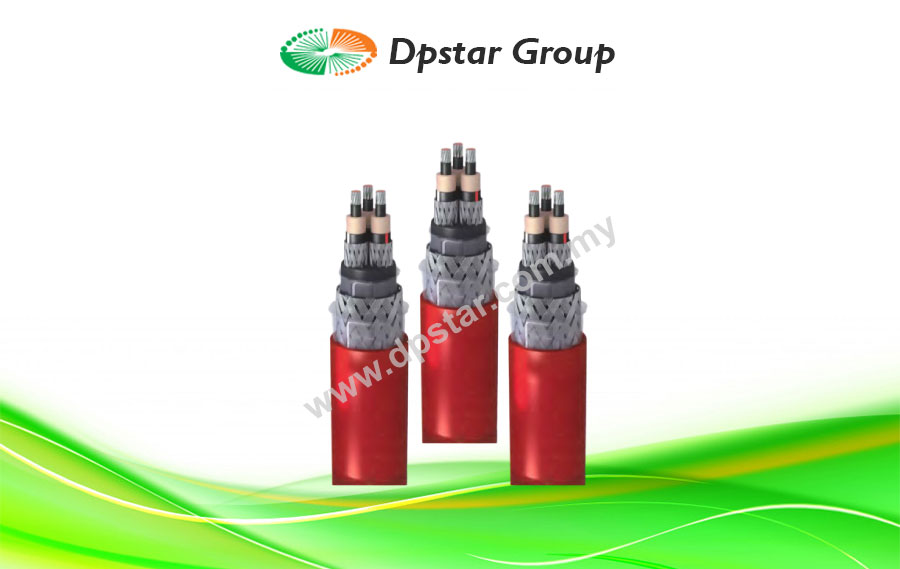

Offshore Power Medium Voltage – RFOU MV

Features

– Maximum service temperature: 90ºC
– Fire non-propagation
– Mud resistance NEK TS 606
– Chemical & oil resistance: excellent
– LSZH
– Low smoke emission: Light transmittance > 60%
– Low corrosive gases emission
– Outdoor installation: permanent
– Mechanical stress impact: AG3. High severity
– Water resistance: AD4 splashes
– UV-resistant
– Electromagnetically protection
– Operation secured according to IEC 60331

Enquiry
Category:

Applications

Offshore power medium Voltage cables. Medium voltage heavy duty, mud resitant cables for offshore applications. Halogen free, flame and fire non propagator. Excellent resistance to toils, abrasion, petrochemical fluids, moisture and salt water. Based on IEC 60092-354 and NEK TS 606. Suitable for fixed installations in vessels and oil rigs.



Specification

Conductor Class 2 tinned copper, bsed on IEC 60228 (class 5 also available upon request).
Semiconducting Semiconducting halogen free compound.
Insulation Halogen Free Ethylene propylene, type EPR accorind to IEC 60092-351.
Inslation screen Semiconducting halogen free compound + tinned copper wire braid.
standard identification is the following 1 conductor Natural
3 conductors off-white + Black + Red (other colours available as option)
Inner sheath Halogen Free compound.
Braid/Armour Tinned copper wires braid.
Outer sheath Mud resistant thermosetting compound, red colour, low smoke and halogen free, type SHF MUD

Download

RFOU MV – Offshore Power Medium Voltage-DpstarGroup
