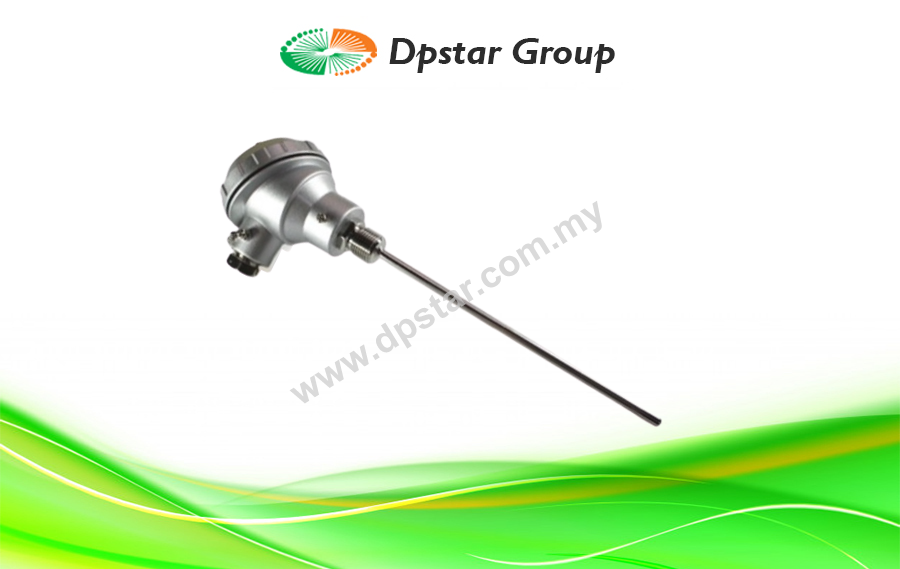

Platinum Curve Rigid Averaging Sensor – MALTEC-T MAS-100

Features

  • Continuous Averaging
  • Rigid Sensor
  • 12″, 18″, 36″ (30.5, 45.7, 61, and 91.4 cm) lengths
  • 100Ω and 1000Ω, 385 curve
  • 1000Ω 375 curve
  • Weather-resistant Box
Enquiry

Continuous-resistance element Platinum Curve Rigid Averaging Sensors provide accurate sensing of duct temperatures when a small, inaccessible area must be covered. They average temperatures over their entire length and terminate in a weather-resistant housing. They are available in 12”, 18”, 24” and 36” (30.5, 45.7, 61 and 91.40cm) lengths. The sensor uses an element that the closely matched platinum resistance/temperature characteristics over the specified range. It is available in 100Ω 375 curve. The sensors have a brass case that is rigid for easy single-point mounting.

Model

  • MAS-1000 : 100Ω With 4 TO 20mA Transmitter
  • MAS-1000 : 1000Ω With 4 TO 20mA Transmitter

Mouting / Dimension

Application

  • Small Ducts Without Access
  • Mixed Air Chambers
  • Hot/Cold deck discharge
  • Face/Bypass Discharge
  • Unit Vents

Specification

Model MAS-100
Sensors 100Ω ± 0.25% @ 32°F (0°C)
TCR 375 or 385
Temp Range -50° to 275°F (-45° to 135°C)
Approx. Sensitivity 100Ω 0.21Ω/°F @ 32°F (0°C)
Element 4 RTD Element
Length 12″ (30 cm) or 18″ (45 cm);
24″ (61 cm) or 36″ (91cm)
Casing Cast Iron
Diameter 6mm
Warranty 1 year
Connection 1/2′ BSP

Ordering Information

Model Description
MAS-100 100Ω With 4 To 20mA Transmitter
MAS-1000 1000Ω With 4 To 20mA Transmitter
Insertion Length
12 12″ length
18 18″ length
24 24″ length
36 36″ length

Download

Maltec-T Platinium Curve Rigid Averaging Sensor_DpstarGroup
