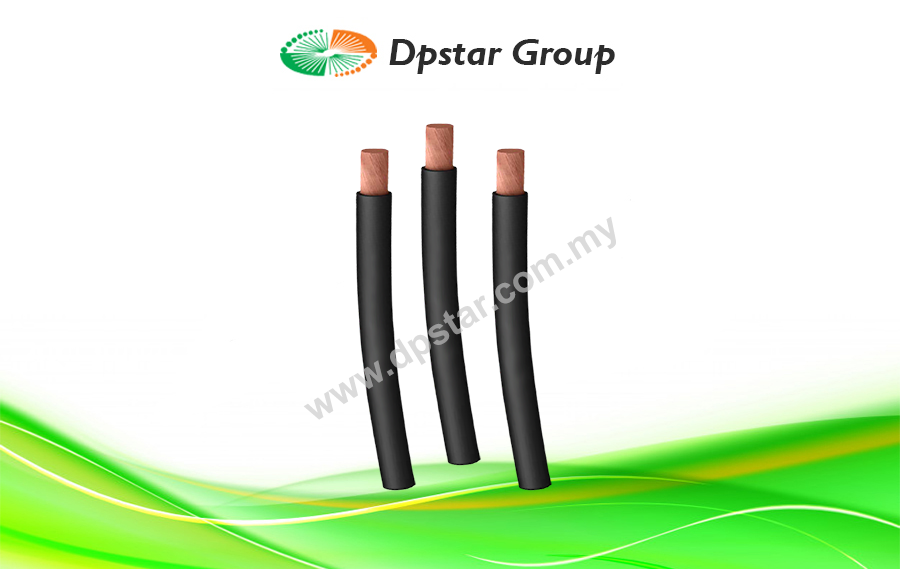

Rubber Cable – H01N2-D

Features

  • Low voltage 100/100V
  • Flame retardant according to UNE-EN 60332-1 and IEC 60332-1
  • Resistant to chemicals and oils – Excellent
  • Maximum operating temperature: 85ºC.
  • Maximum core temperature at short circuit: 250ºC (max. 5 s)
  • Minimum operating temperature: -20ºC (flexible connection)
  • AD3 Splashing water or rain
  • Minimum bending radius: 5x cable diameter
  • Impact resistance: AG2
  • Meter by meter marking
  • Flame non-propagation
  • Outdoor installation: permanent”
Enquiry
Category:

H01N2-D is a harmonized, flexible, rubber welding cable specially designed to transfer high currents between the welding generator and the electrode. Its flexibility makes it easier to use the welding tool and also prevents knots in the cable that could break the inner conductor. It can also be used in automatic welding and machine tools, conveyor plants and production or assembly lines, such as car assembly lines.

Conductor
Electrolytic copper, class D (extra-flexible), based on UNE-EN 50525-2-81.

Outer Sheath
Flexible rubber. Black colour.

Applications
• Welding
• Industrial use
• Mobile use
• Robotics
• Conveyors



Specification

Cros section
(mm2)
Diameter
(mm)
Weight
(Kg/km)
Maximum current on
for 5 minutes.
Voltage drop
(V/A · km)
100% 85% 60% 35%
1 x 10 8,0 140 100 103 108 122 2,45
1 x 16 9,1 195 135 145 175 230 1,56
1 x 25 10,3 280 180 195 230 300 0,998
1 x 35 11,4 375 245 245 290 375 0.709
1 x 50 13,4 520 285 305 365 480 0.493
1 x 70 15,5 725 355 380 460 600 0.348
1 x 95 17,4 945 430 470 560 730 0.264
1 x 120 19,3 1.195 500 540 650 850 0.206
1 x 150 21,4 1.475 580 630 750 980 0.166
1 x 185 23,3 1.78 665 720 860 1120 0.136
