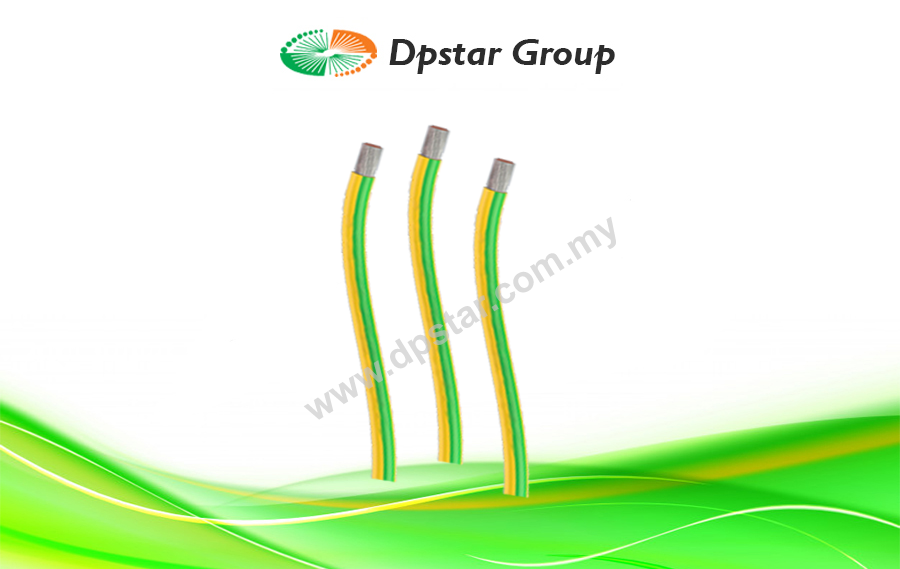

LSHF Safety Cable – H07Z1-K (AS)

Features

  • Specially engineered for earthing connections in outdoor installations.
  • The tinned copper and the special UV-resistant compounds make the cable resistant against corrosion and UV rays degradation.
Enquiry
Category:

H07Z1-K is an LSHF safety cable specially engineered for earthing connections in outdoor installations. The tinned copper and the special UV-resistant compounds make the cable resistant against corrosion and UV rays degradation.

Conductor
Electrolytic tinned copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation
UV resistant (LSZH) polyolefin insulation.
The standard identification of insulated conductors is the following:
• Green/Yellow RAL 1021/6018
• Other colours available on request.

Applications
• Transformer
• Cooling equipment
• Solar panels
• Diesel generators
• Refrigeration towers
• Oil stations

Packaging
High-resistant boxes and cable drums.

Specification

Electrical Performance
Low Voltage 450/750 V
Thermal Performance
Maximum Service Temperature 70ºC
Maximum Short-Circuit Temperature 160ºC (max. 5 s)
Minimum Service Temperature -40ºC (fixed and protected installations)
Mechanical Performance
Minimum Bending Radius x5 cable diameter
Chemical Performance
Chemical & Oil Resistance Acceptable
Fire Performance
Fire Non-Propagation based on UNE-EN 60332-3 and IEC 60332-3
Flame Non-Propagation based on UNE-EN 60332-1 and IEC 60332-1
LSZH (Low Smoke Zero Halogen) based on UNE-EN 60754-1 and IEC 60754-1
Smoke Density based on EN 61034 / IEC 61034. Light transmittance> 60%
Water Performance
Water Resistance AD3 Sprays

Download

H07Z1-K (AS) – LSHF Safety Cable-DpstarGroup
