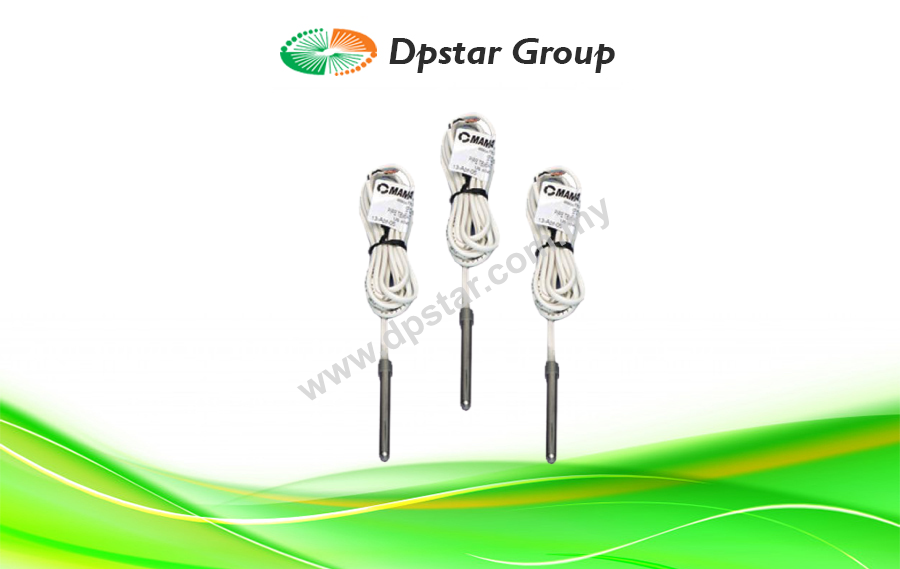

Surface Temperature Sensor Strap On Probe Enclosure – Maltec-T MT-704-A

Features

  • Incorporates a 2” 304 SS probe with a 6ft/1.8m plenum rated cable for pipe surface temperature sensing.
  • Nylon ties are provided to secure the probe to the pipe.
  • MT-704-A  provides a cost effective.
  • Reliable solution  for surface contact temperature measurement of conditioned water pipes, low pressure steam or refrigerant line.
  • Maximum temperature 200°C.
Enquiry

Incorporates a 2” 304 SS probe with a 6ft/1.8m plenum rated cable for pipe surface temperature sensing, Nylon ties are provided to secure the probe to the pipe. MT-704-A  provides a cost effective and reliable solution  for surface contact temperature measurement of conditioned water pipes, low pressure steam or refrigerant line, Maximum temperature 200°C.

Specification

Platinum RTD Sensors ± 0.1% @ 0 C, Alpha: 385 per DIN 43760
Nickel RTD Sensors (#2) ± 0.5 C @ 0 C, 5000 PPM/K T.C.R.
Nickel RTD Sensors (#4) ± 0.5 F @ 70 F/21.1 C, 6000 PPM/K T.C.R.
Balco RTD Sensors ± 0.5 F @ 70 F/21.1 C, 4300 PPM/K T.C.R.
Thermistor Sensors ± 0.2 C interchangeability @ 77 F/25 C
Probe Material 1/4″ / 6.3mm O.D, 0.020″ / 0.5mm wall 304 Stainless Steel
Flange Material Galvanized Steel
Bulkhead Fitting Brass with poly compression sleeve
Plastic Enclosure Polycarbonate 30% glass filled, rated UL 94V-5-0
Steel NEMA-1/IP-30 18 Ga. Galvanized Steel
Steel NEMA-4/IP-65 18 Ga. Cold Rolled Steel, Baked on Enamel
Operating Temp -40F/-40C to 210F/100C
Ambient Temp -40F/-40C to 160F/70C
Warranty Five Years (Lifetime on Moisture Migration)

Ordering Information

MT-704
