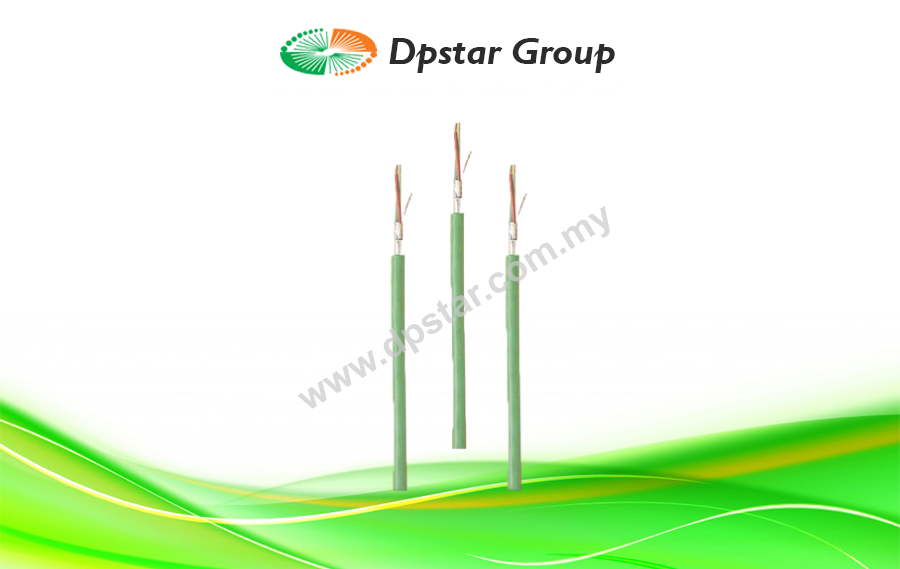

Thermocouple Cable Singlepair – RT-2Y(st)Yv | RT-Y(st)Yv

Features

– Solid conductor of thermocouple material to table page 48
– Insulation polyvinylchloride YI3 or polyethylene 2Yl1 to DIN VDE 0207
– Cores twisted to form a pair
– Colour code: see table page 55
– Wrapping of polyester tapes
– Collective screen of plastic bonded aluminium tape with tinned drain wire 7 x 0.3mm, approx. 25% overlap
– Outer sheath of polyvinyloride YM1 to DIN VDE 0207, colour: see page 55, for intrinsically safe systems: blue with identification stripe

Enquiry

Application

For transmission of thermoelectic voltage from measuring junction to reference junction.

Use

For indoor and outdoor installation and direct burial.

Cable Identification

  • KERPEN special EXTENSION CABLE 300V or
  • KERPEN special COMPENSATING CABLE 300V

Abbreviations

  • RT – thermocoupe extension and compensating cable
  • 2Y – insulation of polyethylene
  • Y – insulation of polyvinylchloride
  • Yv – thicker sheath of polyvinylchloride
  • (St) – collective screen

Specification

Temperature rating
      During operation -30°C up to +70°C
      During installation -5°C up to +50°C
Min bending radius 7.5 x d (d=overall diameter)
Other properties Flame retardant to DIN VDE 0472 part 804
