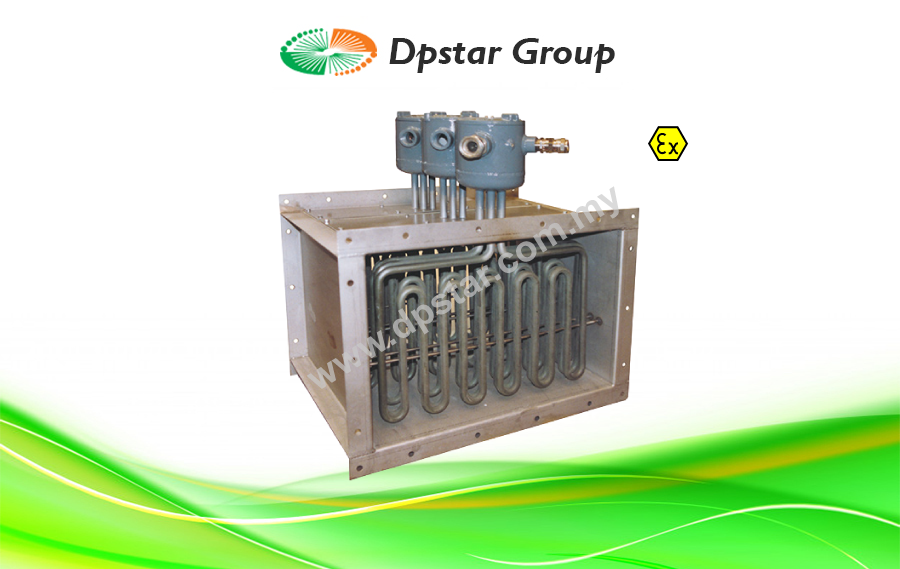

Explosion Proof Duct Heaters | Maltec-H ATEX/IECEx DH Duct Heater

Features

  • Type DH Duct Heaters are pre-engineered, factory assembled units consisting of a standard frame section, heating elements and a prewired control panel.
  • Available in a wide range of standard frame sizes, with various heating capacities and heating stages operating on AC voltage ratings of 120 to 600V.
  • Designed to be inserted in a rectangular opening cut in the side of a horizontal or vertical duct.
  • For larger ducts or where it may be more desirable to attach the duct directly to the heater, a frame may be added to the heater.
  • Standard: IEC 60675
Enquiry

Explosion Proof DH Duct Heaters are pre-engineered, factory assembled units consisting of a standard frame section, heating elements and a prewired control panel. They are available in a wide range of standard frame sizes, with various heating capacities and heating stages operating on AC voltage ratings of 120 to 600V. The standard duct heater is designed to be inserted in a rectangular opening cut in the side of a horizontal or vertical duct. For larger ducts or where it may be more desirable to attach the duct directly to the heater, a frame may be added to the heater.

Duct heater certified for hazardous locations

  • Heavy duty flanged mounting
  • Available stainless steel construction
  • ATEX certified II 2G Ex d IIB or IIC T1 to T6 Gb for gas (non-hazardous air stream)
  • Standard: IEC 60675
  • Custom Designs Available

Applications

  • Primary Room Heating (Central or Zone)
  • Supplemental Room Heating (Heat Pumps)
  • Air Tempering (Outside Air)
  • Preheating (Make-Up Air)
  • Reheating (Overcooling applications)
  • Industrial and Commercial Buildings

Download

Explosion Proof Duct Heaters_DpstarGroup
