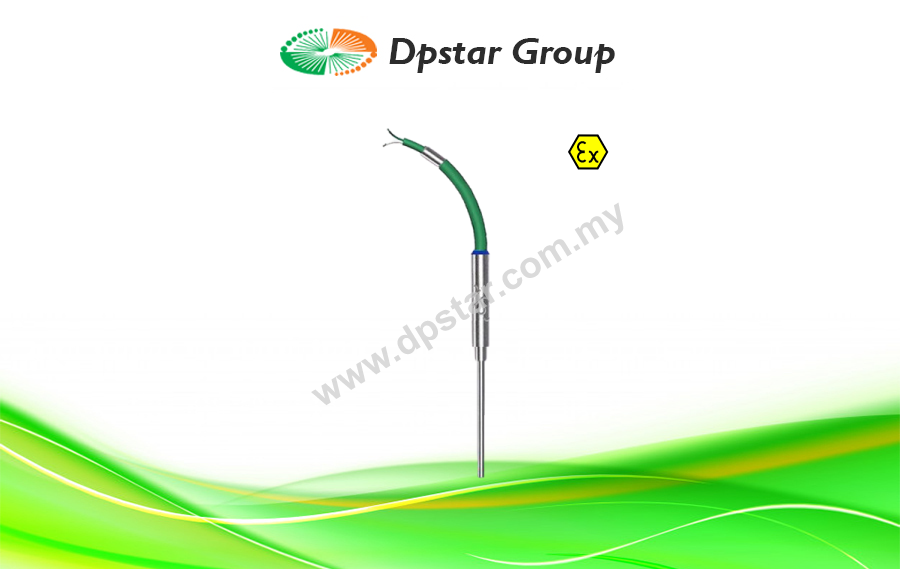

Explosion Proof EEx d Thermocouple For Zone 1 And 2 – Maltec-T TEX35A

Features

  • Measure temperatures in explosive gaseous or liquid environments for Zone 1 and 2.
  • Cable screen isolated from sensor tube.
  • Temperature sensor range from -200°C to 1600°C depending on the sheath material.
  • Sensor with weatherproof connected cable, length as required.
  • Cable transition sealpot epoxy filled.
  • Sensor diameter from 3.2mm to 12.7mm
  • Calibration K,T,J,E,N,R,S or B. Single or duplex.
  • Process connection by an optional compression gland or feedthrough.
  • Direct connected PVC cable with screen and drain wire.
  • Optional: armoured cable.
Enquiry

TEX35A Explosion Proof EEx d Thermocouple is designed to measure temperatures in explosive gaseous or liquid environments for Zone 1 and 2. Cable screen isolated from sensor tube.  Temperature sensor range from -200°C to 1600°C depending on the sheath material. Sensor with weatherproof connected cable, length as required. Cable transition sealpot epoxy filled. Sensor diameter from 3.2mm to 12.7mm Calibration K,T,J,E,N,R,S or B. Single or duplex. Process connection by an optional compression gland or feedthrough. Direct connected PVC cable with screen and drain wire. Optional: armoured cable.

dpstar Group offers a wide range of standard or customised ATEX or IECEx certified temperature-sensors, single and multipoint for Gas zone 0, 1 and 2 with Exi, Exe and Exd, and Dust for zone 20, 21 and 22 approval. These sensors can be fitted with a integral certified head-mounted temperature transmitter or display unit with 4-20mA, Hart or Profibus communication.

Specification

CONSTRUCTION
Suitable for zone 1 and 2
Ingress protection lP67
Ambient temp. range -20°C..+70°C
SHEATH
Construction Mineral insulated ( MgO )
Material SS316
Diameter “D” Customer to specify
Length “L” Customer to specify
SEALPOT
Dimensions Approx. 70 x 14mm
Cable screen Sensor tube isolated from cable screen
THERMOCOUPLE
Calibration K, T, J, E, N, R, S, B, U
For duplex KK, TT, JJ, EE, NN, RR, SS, BB, UU
LEAD WIRE
Insulation PVC, 105 °C
Wire length “K” Customer to specify

Download

Explosion Proof Thermocouple_DpstarGroup
