Flexible Signal Cable, PVC Insulated With Cu Screen & PVC Sheath – YSLCY

Features

  • Used for surveillance and control of static or mobile devices in the industry, electric plants, or offices.
  • The screen of braided copper wires serves as protection against electromagnetic impacts and signal disturbances.
  • Installed in dry or damp premises, the outdoor application only under protection against UV irradiation.
  • Not intended for laying in ground or water.
  • Lightweight and relatively thin, resistant to medium mechanical loads, used for fixed or limitedly mobile installations (not permanently mobile) without strain.
Enquiry
Category:

Dpstar Group is your one-stop solution provider for Cables and Wires. We are the leading cable supplier in Malaysia, specializing in power cables, control instrument cables, Compensating Cables, and Heat Resistance Cables. As a leading control cable supplier, we have vast experience in advising on control cable selection. Our cables are supplied to meet the stringent standards of quality, performance, and functionality, with the ultimate goal of customer satisfaction.

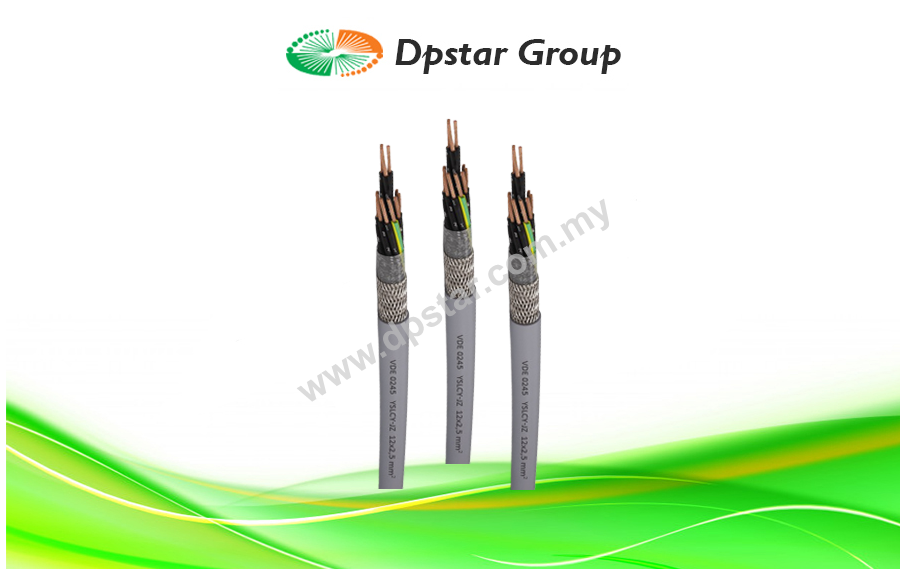

The YSLCY Flexible Signal Cable used for surveillance and control of static or mobile devices in the industry, electric plants, or offices. The screen of braided copper wires serves as protection against electromagnetic impacts and signal disturbances. Lightweight and relatively thin, resistant to medium mechanical loads, used for fixed or limitedly mobile installations (not permanently mobile) without strain. Installed in dry or damp premises, the outdoor application only under protection against UV irradiation. Not intended for laying in ground or water.

Specification

Construction
Conductor Bare copper conductor, fine wired stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295
Insulation PVC compound TI2 acc. to HD 21.1 / DIN VDE 0281 or YI2 acc. to VDE 0207.4, with green-yellow core, always in external layer (≥ 3 cores) or without green-yellow core
Core Marking (acc. to DIN VDE 0293) black numbered, cores stranded in layers
Separator Transparent plastic foil
Screen Braid of tinned copper wires of 0,16 mm diameter, with min 85% overlap
Sheath PVC compound TM2 acc. to HD 21.1 / DIN VDE 0281 or YM2 acc. to VDE 0207.5
sheath colour Grey (RAL 7001) or transparent
Technical Data
Temperature Range
During Installation -5 °C up to +50 °C
Fixed Installed -30 °C up to +70 °C
Nominal Voltage Uo /U = 300/500 V
Test Voltage min. 4000 V
Insulation Resistance min. 20 MΩ x km
Min. Inner Bending Radius
Fixed Installed 6D
At Application With Bending 20D
Behaviour In Fire IEC 60332-1
Conductor Cross-Section Construction of Individual Conductor Insulation Thickness Conductor Resistance at 20 °C
nominal
mm²
nominal
n x mm
nominal
mm
max.
Ω/km
0.5 16 x 0.20 0.4 39
0.75 24 x 0.20 0.4 26
1 32 x 0.20 0.4 19.5
1.5 30 x 0,25 0.5 13.3
2.5 50 x 0.25 0.7 7.98
4 56 x 0.30 0.8 4.95
6 84 x 0.30 0.8 3.3
10 80 x 0.40 1 1.91
16 128 x 0.40 1 1.21
Dimensions – Number of Cores x Conductor Cross-Section External Diameter Cu Weight Cable Ceight  Packing*
N x mm² approx. mm kg/km approx. kg/km
2 x 0.5 5.3 32 45 CUT
3 x 0.5 5.6 39 55 CUT
4 x 0.5 6.3 46 61 CUT
5 x 0.5 6.6 52 74 CUT
6 x 0.5 7.2 66 89 CUT
7 x 0.5 7.6 68 98 CUT
8 x 0.5 8.3 80 117 CUT
10 x 0.5 9 81 135 CUT
12 x 0.5 9.5 117 157 CUT
14 x 0.5 10.4 122 190 CUT
16 x 0.5 11.2 123 210 CUT
18 x 0.5 11 156 217 CUT
20 x 0.5 11.8 173 240 CUT
21 x 0.5 12.3 189 250 CUT
24 x 0.5 13 236 300 CUT
25 x 0.5 13.6 250 314 CUT
30 x 0.5 14 297 360 CUT
32 x 0.5 15.2 301 425 CUT
34 x 0.5 15.3 312 433 CUT
36 x 0.5 15.7 320 446 CUT
40 x 0.5 16.5 343 475 CUT
50 x 0.5 18.4 407 573 CUT
2 x 0.75 6.2 39 59 CUT
3 x 0.75 6.2 49 66 CUT
4 x 0.75 6.7 57 77 CUT
5 x 0.75 7.4 70 93 CUT
6 x 0.75 8 78 113 CUT
7 x 0.75 8.6 98 130 CUT
8 x 0.75 9.2 16 145 CUT
10 x 0.75 10.3 140 180 CUT
12 x 0.75 10.7 151 202 CUT
14 x 0.75 11.4 144 225 CUT
16 x 0.75 12 172 275 CUT
18 x 0.75 12.8 207 292 CUT
20 x 0.75 13.4 220 320 CUT
24 x 0.75 15.5 250 435 CUT
25 x 0.75 15.6 271 415 CUT
27 x 0.75 15.8 287 435 CUT
30 x 0.75 16.1 297 450 CUT
32 x0.75 16.6 330 484 CUT
34 x 0.75 17.2 370 535 CUT
37 x 0.75 18.1 386 592 CUT
42 x 0.75 18.8 430 610 CUT
50 x 0.75 20.8 480 777 CUT
61 x 0.75 23.7 555 900 CUT
2 x 1 6.7 55 65 CUT
3 x 1 7 70 80 CUT
4 x 1 7.1 80 98 CUT
5 x 1 8.5 95 127 CUT
6 x 1 9.1 105 144 CUT
7 x 1 9.7 120 158 CUT
8 x 1 11 130 197 CUT
10 x 1 12 138 232 CUT
12 x 1 12.4 186 260 CUT
14 x 1 13 198 302 CUT
16 x 1 13.9 203 346 CUT
18 x 1 14.5 245 380 CUT
20 x 1 15.8 286 440 CUT
25 x 1 18 342 534 CUT
34 x 1 20.6 440 741 CUT
37 x 1 21 485 790 CUT
50 x 1 24.2 626 1205 CUT
61 x 1 27.3 710 1205 CUT
2 x 1.5 7.3 65 88 CUT
3 x 1.5 7.7 90 100 CUT
4 x 1.5 8.3 110 126 CUT
5 x 1.5 9.4 125 160 CUT
7 x 1.5 10.7 159 208 CUT
8 x 1.5 12 172 244 CUT
10 x 1.5 13.4 193 315 CUT
12 x 1.5 13.6 254 338 CUT
14 x 1.5 13.7 272 383 CUT
16 x 1.5 14.3 285 424 CUT
18 x 1.5 16.3 367 479 CUT
21 x 1.5 17 424 560 CUT
24 x 1.5 19.7 448 690 CUT
25 x 1.5 20.3 492 705 CUT
34 x 1.5 21.3 683 950 CUT
42 x 1.5 25.8 782 160 CUT
50 x 1.5 26.7 977 1290 CUT
61 x 1.5 29.1 1120 1705 CUT
2 x 2.5 9 98 130 CUT
3 x 2.5 9.9 148 167 CUT
4 x 2.5 10.2 174 195 CUT
5 x 2.5 11.6 200 223 CUT
7 x 2.5 13.7 235 344 CUT
10 x 2.5 15.8 335 460 CUT
12 x 2.5 18.2 440 570 CUT
18 x 2.5 19 569 978 CUT
25 x 2.5 22.2 827 1358 CUT
3 x 4 11.5 178 245 CUT
4 x 4 12.9 290 310 CUT
5 x 4 14.3 328 385 CUT
7 x 4 15.4 355 500 CUT
3 x 6 13 240 315 CUT
4 x 6 14.7 360 415 CUT
5 x 6 16.4 441 509 CUT
7 x 6 18 505 672 CUT
3 x 10 16.9 371 490 CUT
4 x 10 18.9 535 731 CUT
5 x 10 20.7 714 853 CUT
7 x 10 22.6 820 1291 CUT
4 x 16 20.8 809 993 CUT
5 x 16 22.9 1050 1295 CUT
7 x 16 24.8 1470 1813 CUT

*Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length
