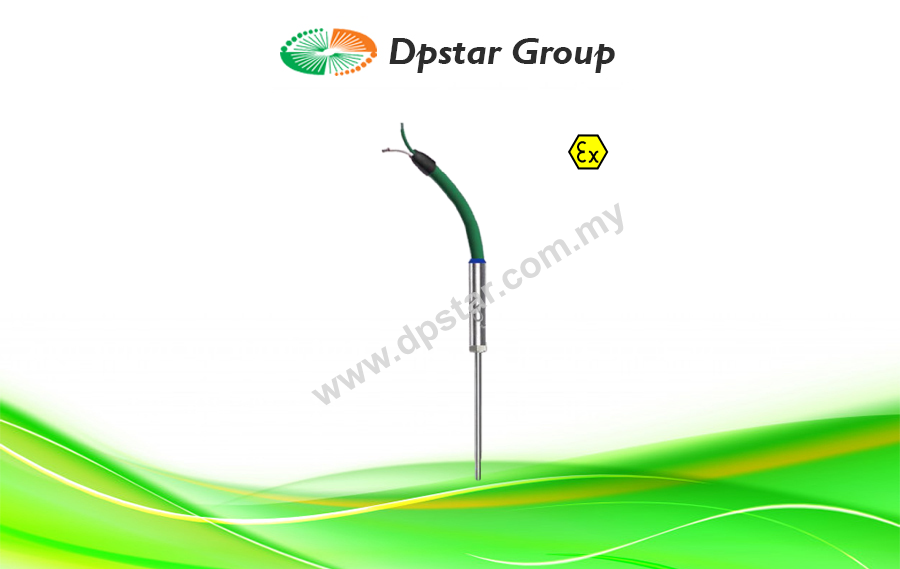

Explosion Proof EEx e Thermocouple For Zone 1 And 2 – Maltec-T TEX15C

Features

  • Measure temperatures in explosive gaseous or liquid environments for Zone 1 And 2.
  • Sensor with weatherproof cable, length as required.
  • Cable transition seal pot epoxy filled.
  • Temperature sensor range from -200°C to 1600°C depending on the sheath material.
  • Sensor diameter from 3.2mm to 12.7mm.
  • Calibration K,T,J,E,N,R,S or B.
  • Single or duplex.
  • Process connection by an optional compression gland or feedthrough.
  • Cable insulation PVC, PE or PTFE with screen and drain wire.
  • Optional: armoured cable.
Enquiry

TEX15C Explosion Proof EEx e Thermocouple is designed to measure temperatures in explosive gaseous or liquid environments for Zone 1 And 2. Sensor with weatherproof cable, length as required. Cable transition seal pot epoxy filled. Temperature sensor range from -200°C to 1600°C depending on the sheath material. Sensor diameter from 3.2mm to 12.7mm. Calibration K,T,J,E,N,R,S or B. Single or duplex. Process connection by an optional compression gland or feedthrough. Cable insulation PVC, PE or PTFE with screen and drain wire. Optional: armoured cable.

dpstar Group offers a wide range of standard or customised ATEX or IECEx certified temperature-sensors, single and multipoint for Gas zone 0, 1 and 2 with Exi, Exe and Exd, and Dust for zone 20, 21 and 22 approval. These sensors can be fitted with a integral certified head-mounted temperature transmitter or display unit with 4-20mA, Hart or Profibus communication.

Specification

CONSTRUCTION
Suitable for zone 1 and 2
Ingress protection IP65
Ambient temp. range -40°C..+80°C
SHEATH
Construction Mineral insulated (MgO)
Material SS316
Diameter Customer to specify
Length “L” Customer to specify
Hot junction Isolated
SEALPOT
Length 40 mm
Diameter To suit cable diameter
LEAD WIRE
Type of cable PVC standard
Cable length “K” Customer to specify
THERMOCOUPLE
Calibration K, T, J, E, N, R, S, B, U
For duplex KK, TT, JJ, EE, NN, RR, SS, BB, UU

Download

Explosion Proof Thermocouple_DpstarGroup
